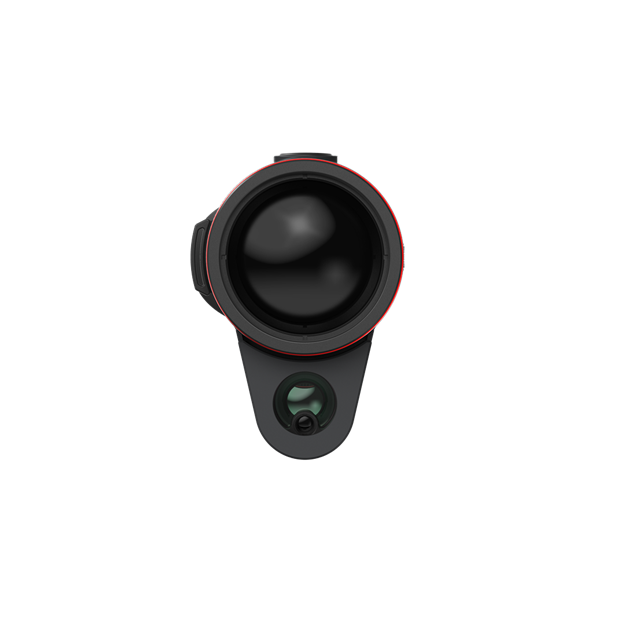

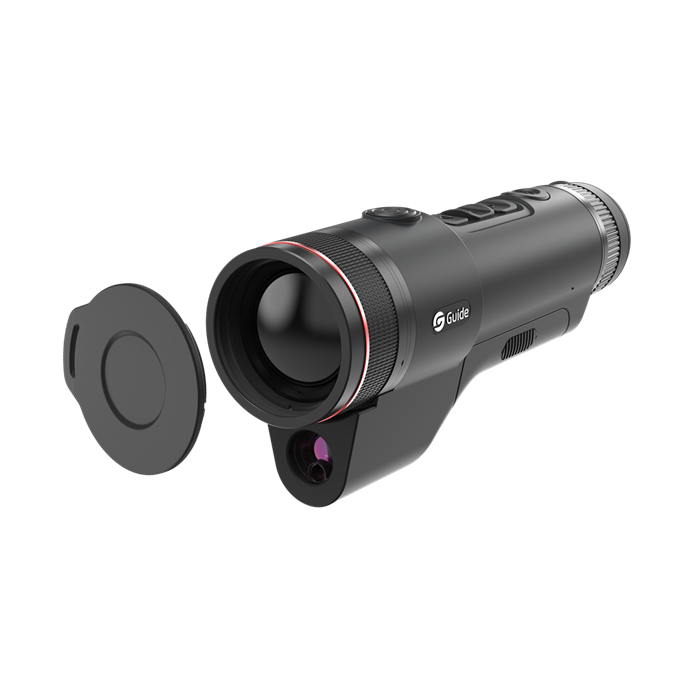

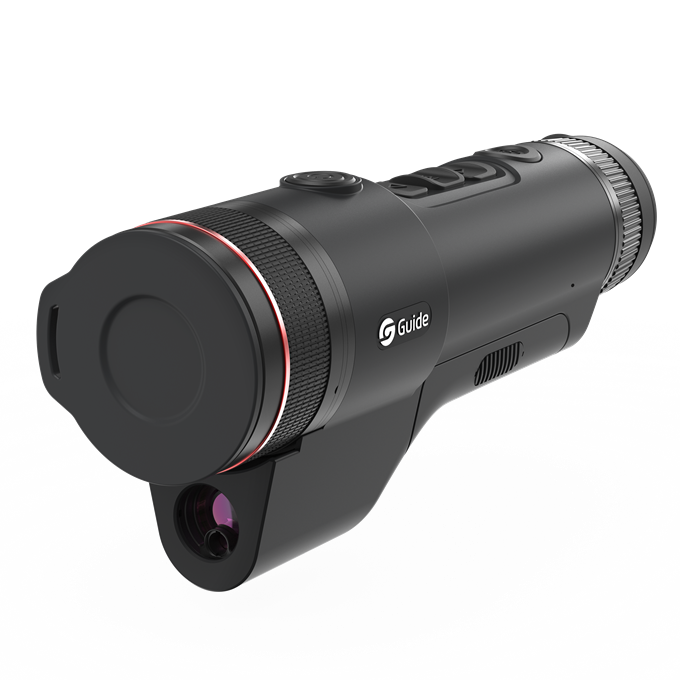

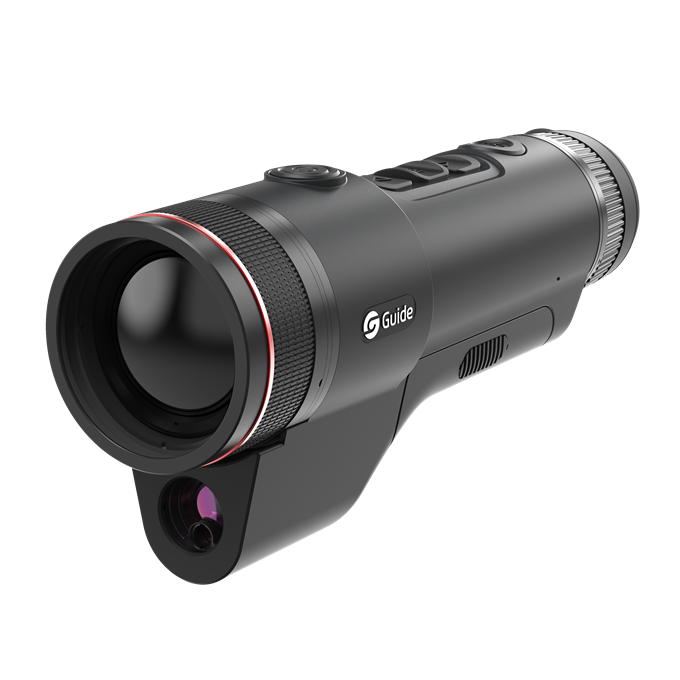

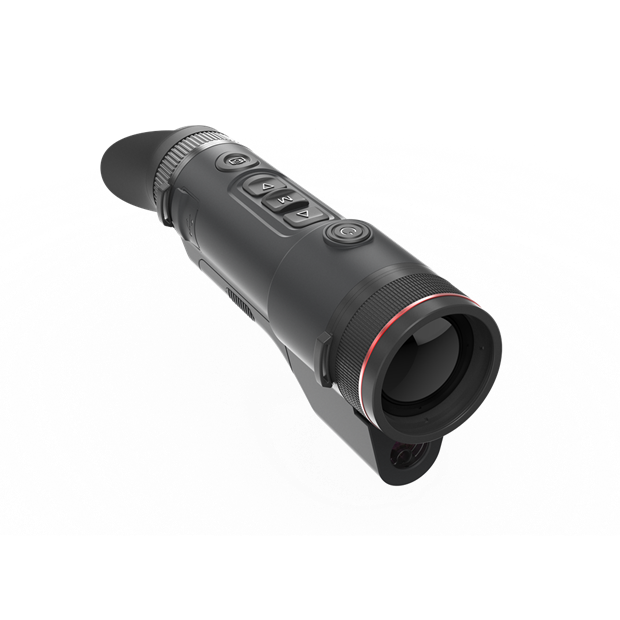

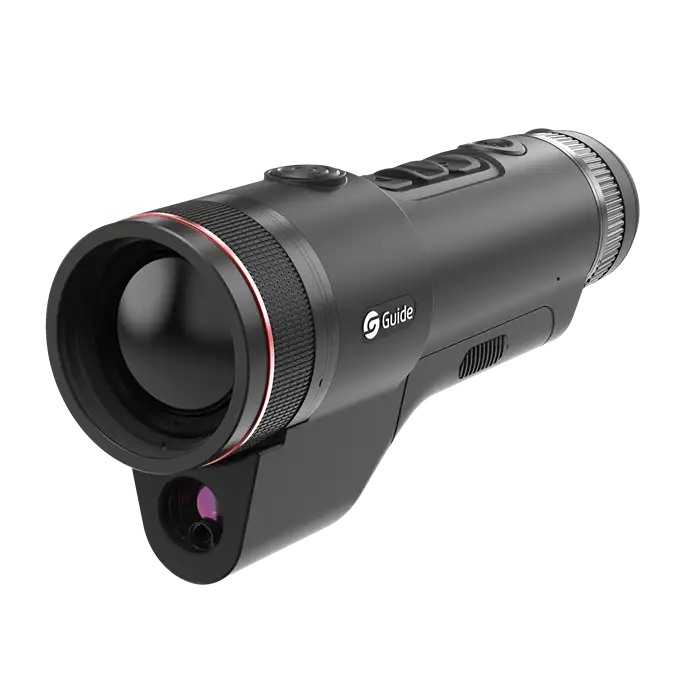

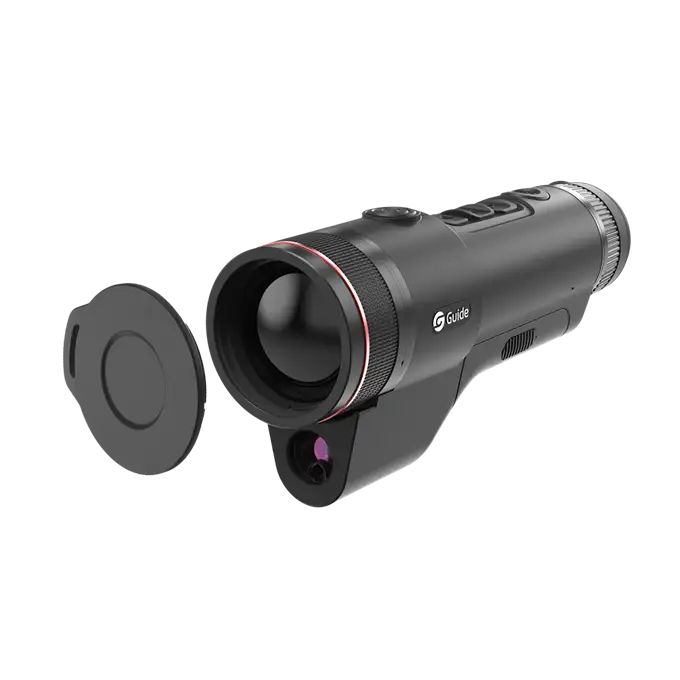

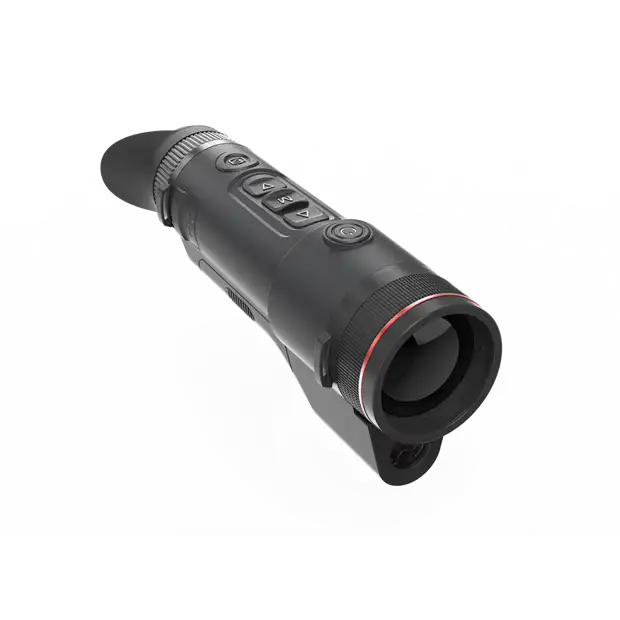

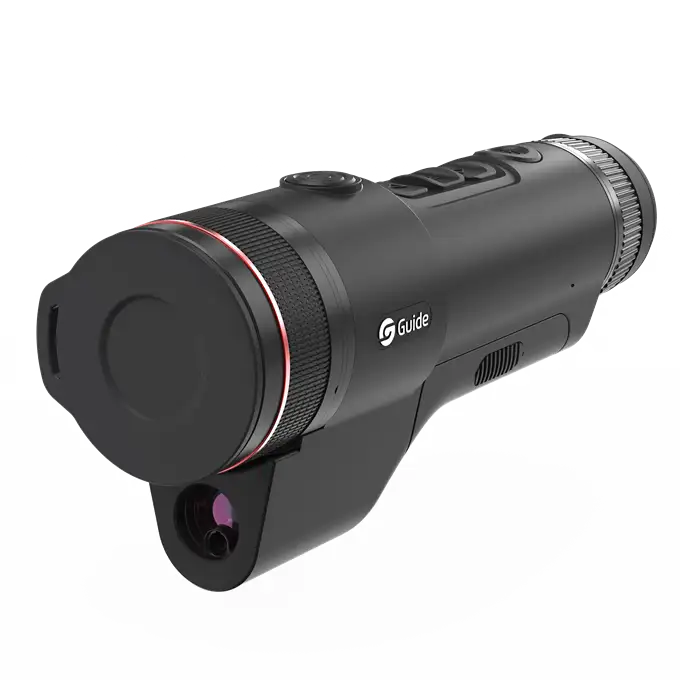

TJ1250LP
Handheld Thermal Imaging Monocular
TJ LRF Pro Series has fully upgraded its hardware configuration and software functions, bringing it to new heights in picture clarity, observation comfort, and intelligent operation. It is equipped with a 12μm high-sensitivity infrared detector, making your targets in the dark clearly visible and lifelike. 0.5" ultra-large AMOLED display presents you with a stunning visual effect like a home theater. Built-in 1500m laser rangefinder, triggered with one button, makes your adventure more secure and smooth.
18mKNETD
1280×1024@12μmResolution
0.5'' AMOLED 1600×1200Display
2600m/2800ydDetection range
ADD TO COMPARE
-
Mega-pixel IR detector, NETD reaches 18mK
The upgraded TJ LRF Pro Series utilizes an industry-leading 1280×1024@12μm infrared detector with a NETD down to 18mK, even the slightest temperature differences can be distinguished in complete darkness.
-
-
Top-notch visual effect, 0.5'' large screen
The ultra-large 1600×1200 AMOLED display presents a stunning visual effect like a 90” home theater at a 2.5-meter distance, bringing it to new heights in picture clarity and observation comfort.
-
-
Game-changing 1500m laser ranging
The laser rangefinder module of the TJ LRF Pro Series has been upgraded to achieve a remarkable breakthrough, extending the maximum measurement distance to 1500 meters.
-
-
50mm F1.0 lens, 2600m detection range
Multiple focal lengths give TJ LRF Pro Series convenience for long-distance observation and hunting, the maximum 50mm F1.0 lens can detect targets up to 2600m.
-
-

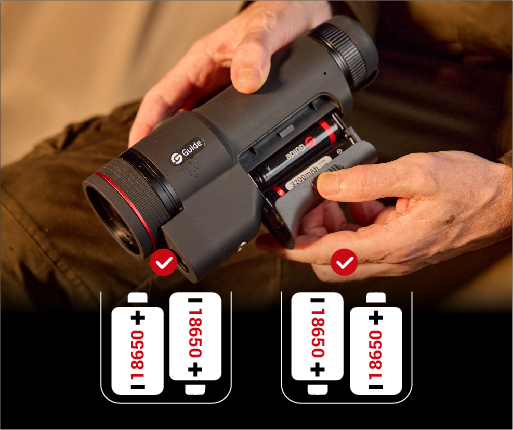

Unique design of blind-mountable universal battery
Utilizing standard 18650 batteries, equipped with a safety circuit protection design. When replacing the batteries, simply ensure that the positive and negative poles of the two cells are oriented oppositely, reducing the burden of identification and memory.
-
-

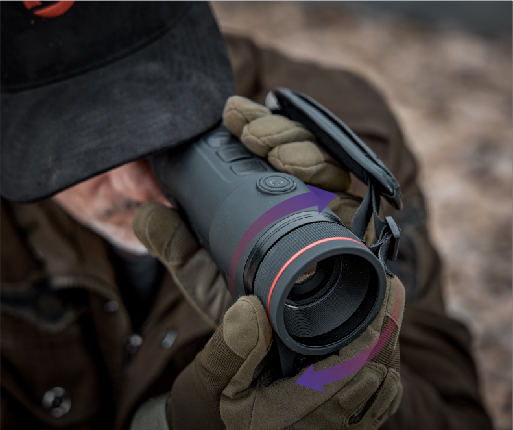

Ambidextrous design, easy operation in the dark
Both left and right hands can operate easily. Left/right eye masks and hand straps can be switched in one step.
-
-
Video recording including sound
The device supports both photo and video capture, featuring a built-in microphone to ensure audio is included in your recordings.
-
Technical Parameters
Model
TJ1250LP
ADD TO COMPARE
| Sensor | ||||
|---|---|---|---|---|
| Type | Uncooled VOx Infrared Detector, 8 to 14μm | |||
| Resolution | 1280×1024@12μm | |||
| NETD | 18mK | |||
| Frame rate | 50Hz | |||
| Lens | ||||
|---|---|---|---|---|
| Objective lens | 50mm, F1.0 | |||
| Field of view | 17.5°×14.0° | |||
| FOV m@100m | 31×25 | |||
| Magnification | 2.36x~37.76x | |||
| Detection range | 2600m/2800yd | |||
| Display | ||||
|---|---|---|---|---|
| Display type | 0.5'' AMOLED 1600×1200 | |||
| Color palettes | White Hot, Black Hot, Red Hot, Green Hot, Iron Red, Blue Hot, Sepia | |||
| Eyepiece | Eye relief: 16mm; Diopter: -6 to +6; Zoom: 18x | |||
| Hardware | ||||
|---|---|---|---|---|
| Laser rangefinder | 1500m/1630yd | |||
| WIFI | 2.4G, 5G | |||
| Interface | USB Type-C (Power supply/USB2.0) | |||
| Others | Microphone, Compass, Gyroscope, Bluetooth | |||
| System | ||||
|---|---|---|---|---|
| Recording function | Photo/Video (Audio recording included) | |||
| Memory capacity | 256GB | |||
| Power | ||||
|---|---|---|---|---|
| Battery type | 2 replaceable 18650 batteries | |||
| Operating time | 6 hours | |||
| Environmental | ||||
|---|---|---|---|---|
| Operating temp. | -20°C to 50°C / -4°F to +122°F | |||
| Encapsulation | IP67 | |||
| Physical | ||||
|---|---|---|---|---|
| Weight (g/oz) | 689/24.30 | |||
| Size (mm/in) | 247×101×70/9.72×3.98×2.76 | |||
| Standard | A device, Wrist strap, Battery charger, 18650 battery×2, 5V2A adapter (US, Britain, Australia and Europe), USB Type-C cable, Quick use guide, Warranty card | |||
| Optional | Bluetooth remote control, 18650 battery | |||
