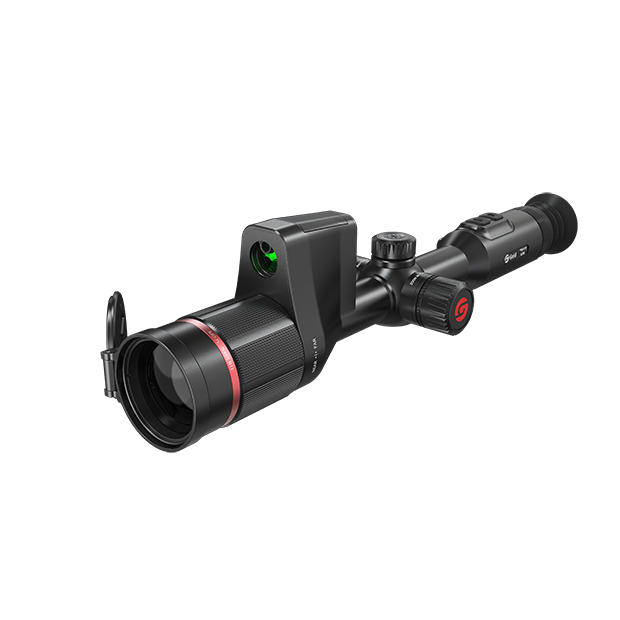

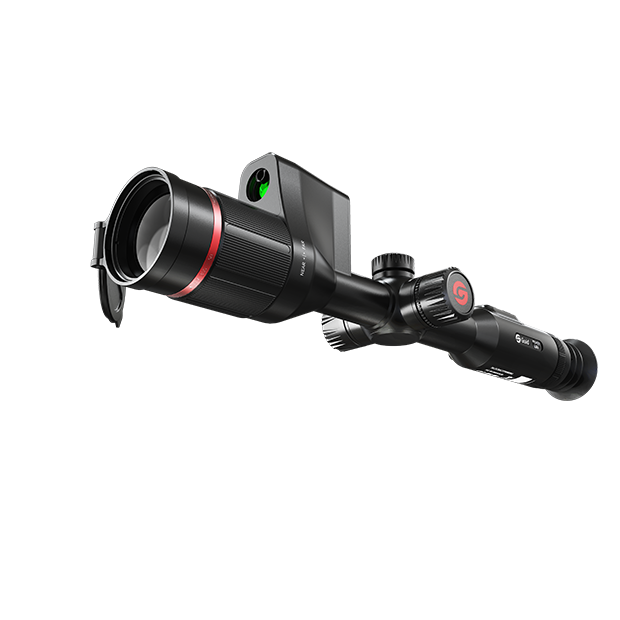

TU651 LRF
Thermal Imaging Scope
With the laser rangefinder seamlessly integrated into a slim-design scope, the TU Gen2 LRF Series enables precise detection of targets at distances of up to 1,500 meters, empowering hunters with a reliable perception of distance at the hunting site to make accurate shots. The product has undergone meticulous optimization in its detailed design, elevating user-friendly operation. Furthermore, the battery life has seen a substantial extension, resulting in a 20% increase in duration.
640×512IR Resolution
1440×10800.49" AMOLED Display
OTA Upgradefor the latest firmware
1500mLaser Ranging
ADD TO COMPARE
-

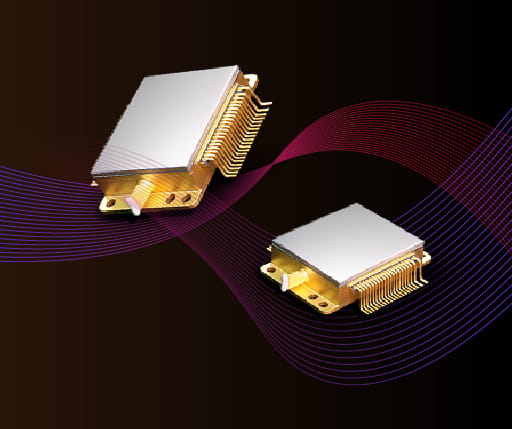

High Definition Thermal Sensor, NETD Optimized to 20mK

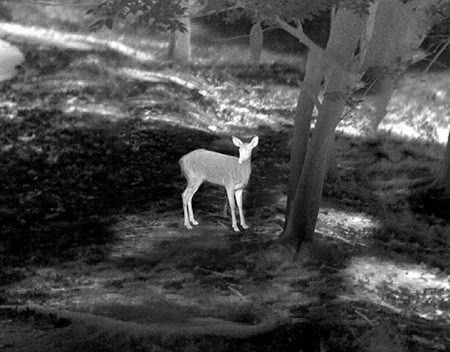

High-quality thermal imaging sensor with 400x300@12μm or 640x512@12μm resolution with clear distinctions allows for improved recognition of animals, their body parts, and even minute elements such as branches, leaves, grass, and the landscape.
-
-
0.49-inch 1440x1080 AMOLED Display
The enlarged 0.49-inch AMOLED display presents more image details for making decisions. The heat signature captured by the thermal image can be shown on the display using the picture-in-picture (PIP) mode, significantly enhancing the comfort observation.
-
-

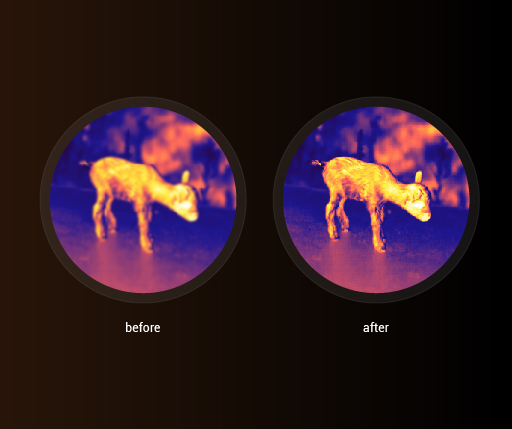

PureIR Adaptive Dynamic Filtering Algorithm (PureIR)
The PureIR combining 3DNR and PureIR adaptive filtering algorithms delivers high-sensitivity thermal images, reducing image distortion and enriching detail even for distant targets.
-
-
Fast Detection 1500m LRF
The compact laser ranging module, which has been recently upgraded, offers accurate and rapid detection, allowing you to identify targets at distances of up to 1500 meters during nighttime hunting, thus enhancing your hunting efficiency.
-
Media Gallery
Technical Parameters
Model
TU651 LRF
ADD TO COMPARE
| Sensor | ||||
|---|---|---|---|---|
| Type | Uncooled VOx Infrared Detector, 8 to 14μm | |||
| Resolution | 640×512@12μm | |||
| NETD | 20mK | |||
| Frame rate | 50 Hz | |||
| Lens | ||||
|---|---|---|---|---|
| Objective lens | 50mm, F1.0 | |||
| Field of view | 8.8°×7.0° | |||
| FOV m@100m | 15×12 | |||
| Magnification | 3.0x~23.6x | |||
| Detection range | 2600m/2800yd | |||
| Display | ||||
|---|---|---|---|---|
| Display type | 0.49'' AMOLED 1440×1080 | |||
| Color palettes | White Hot, Black Hot, Red Hot, Green Hot, Iron Red, Blue Hot, Sepia | |||
| Eyepiece | Eye relief: 48 mm; Diopter ± 4; Zoom: 14x | |||
| Hardware | ||||
|---|---|---|---|---|
| Laser rangefinder | 1500m/1630yd | |||
| WIFI | 2.4G | |||
| Interface | USB Type-C; Micro HDMI | |||
| Tube diameter | Standard 30 mm | |||
| Others | Microphone, Bluetooth | |||
| System | ||||
|---|---|---|---|---|
| Recording function | Photo/Video (Audio recording included) | |||
| Memory capacity | 128GB | |||
| Power | ||||
|---|---|---|---|---|
| Battery type | Single 18650 battery (built-in) and customized battery (external) | |||
| Operating time | 12 hours | |||
| 25mK | ||||
|---|---|---|---|---|
| Recording function | 25mK | |||
| Memory capacity | 20mK | |||
| Environmental | ||||
|---|---|---|---|---|
| Operating temp. | -30°C to 50°C / -22°F to +122°F | |||
| Shock | 800G at 1ms half sine pulse (as per IEC60068-2-27) | |||
| Encapsulation | IP67 | |||
| Physical | ||||
|---|---|---|---|---|
| Weight (g/oz) | 1171/41.31 | |||
| Size (mm/in) | 381×106×99/15.00×4.17×3.90 | |||
| Standard | Device, Lens cover, Eye mask, 5V2A adapter (US, Britain, Australia and Europe), Customized battery×2, Customized battery charger, USB Type-C cable, Micro HDMI cable, Clip×2, Quick start guide, Warranty card | |||
| Optional | Bluetooth remote control, Customized battery | |||
