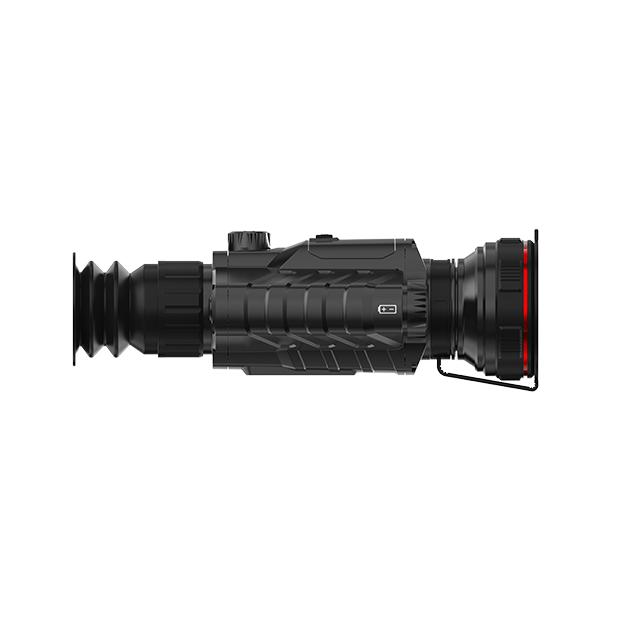

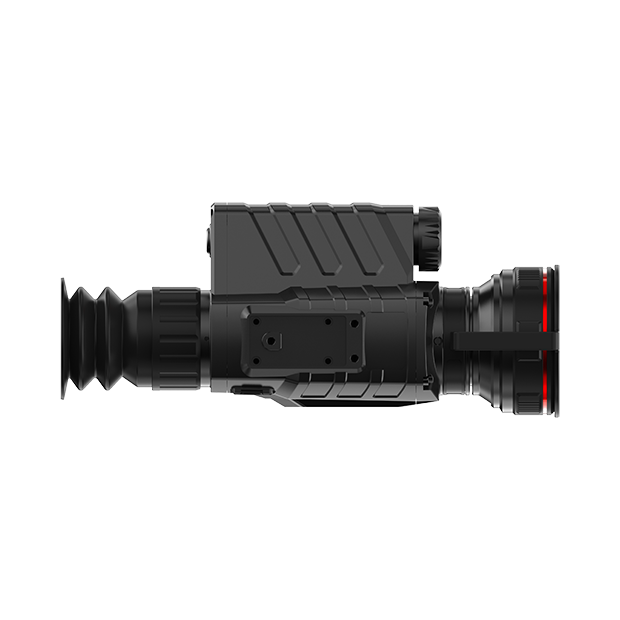

TR650
Thermal Imaging Scope

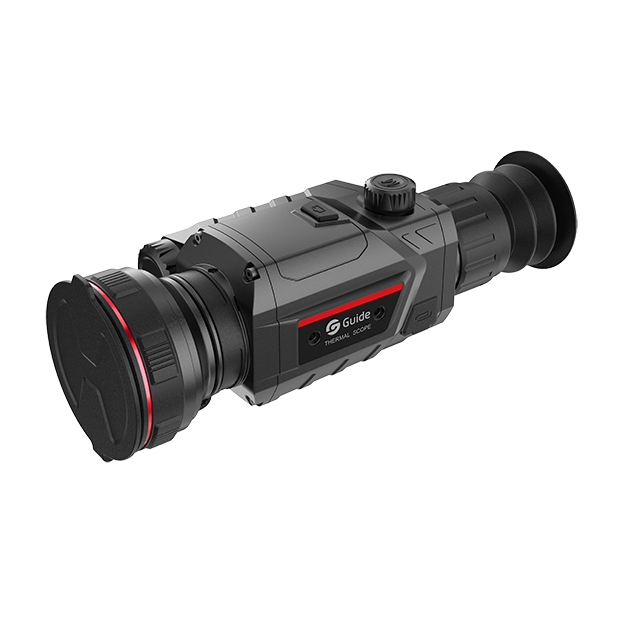

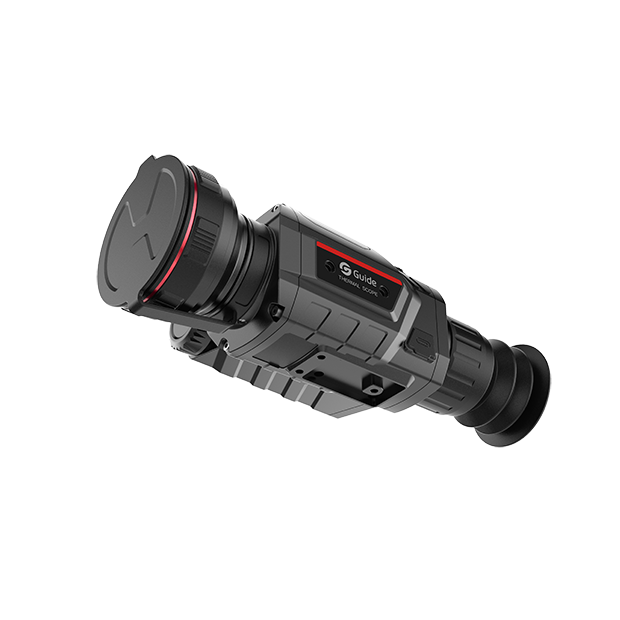

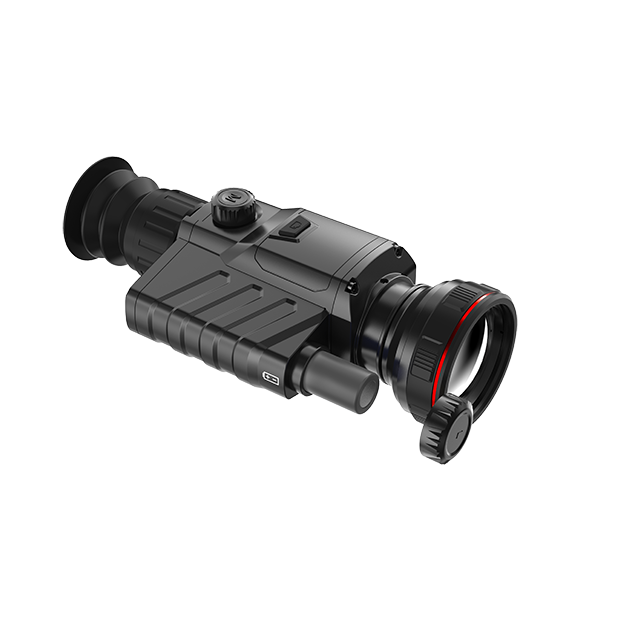

TR Series is an economical civilian infrared thermal imaging scope that adopts high sensitivity thermal detector with three different lens options 25 mm, 35 mm, and 50 mm. The TR Series offers sharp, detailed images with 640 × 512 IR resolution while retaining accuracy. TR thermal scope also features a compact size, waterproof and dustproof, high shock resistance, rugged and durable, which performs impressively in harsh weather.
640×512IR resolution
50mm F1.0Focal length
8.8°×7.0°Field of view
1024×768AMOLED display
ADD TO COMPARE
-
High Definition Detector
TR Series uses high-quality 12µm thermal imaging detectors with 640×512 resolution and 20mK NETD to offer an exceptionally sharp image and excellent thermal sensitivity in all weather conditions.
-
-
Full-color HD AMOLED Display
The full-color 0.39-inch HD AMOLED display with 1024×768 pixels delivers sharp, richly contrasted, and vivid images that capture every moment in perfect detail.
-
-

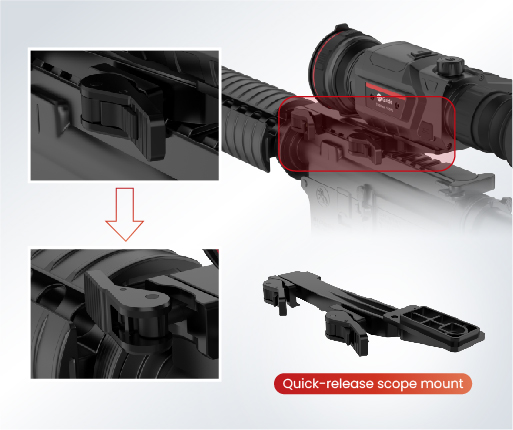

Quick-release scope mount for tool-free mounting
Simply mount the device onto the quick-release scope mount, then tighten the locking lever, and the TR Series can be easily and securely mounted without any other tools.
-
-
Ballistic Calculation

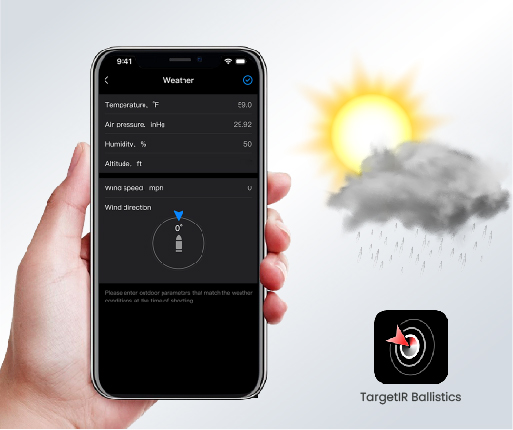

Connect the device to TargetIR Ballistics APP (Android or iOS) to set bullet and weather parameters, then transmit the data to the device for ballistic calculation, and achieve high-precision shooting easily.
-
-

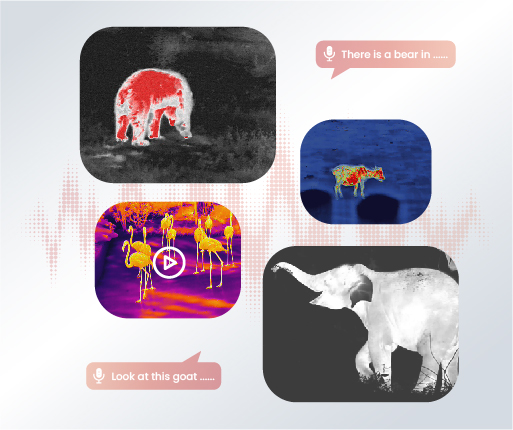

Capturing photos and videos with audio
The photo and video function allow users to capture and share wonderful moments anytime, and integrates a built-in microphone for recording sound.
-
-

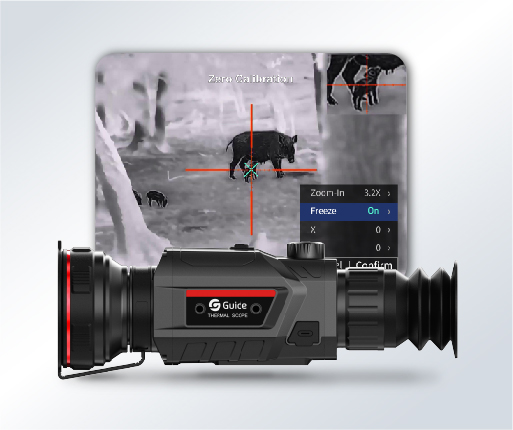

One-touch Freeze
Screen freeze for quick and easy zeroing improves accuracy and enhances user convenience, contributing to a better user experience.
-
-

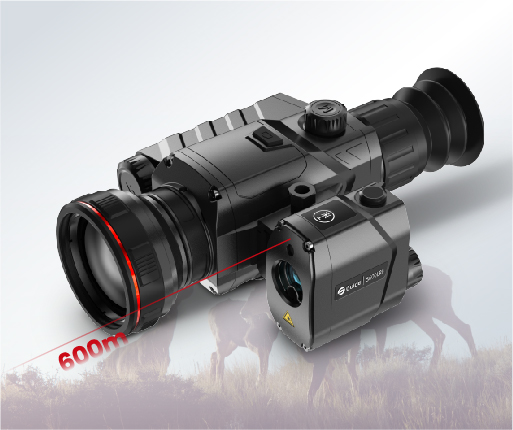

External Laser Range Finder
With an external laser range finder, the TR series can achieve 600 meters of accurate distance measurement for quick target searching, allowing for direct connection on boot without manual pairing.
-
-
Seven Color Palettes

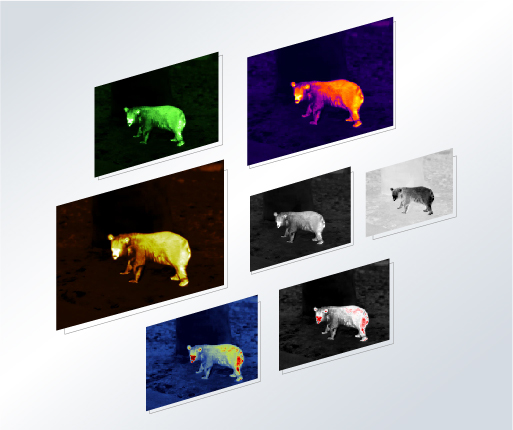

The 7 color palettes improve viewing under various conditions. White Hot, Black Hot, and Red Hot are optimal for object detection. Green Hot, Iron Red, Blue Hot and Sepia help increase chances for recognition and identification.
-
-

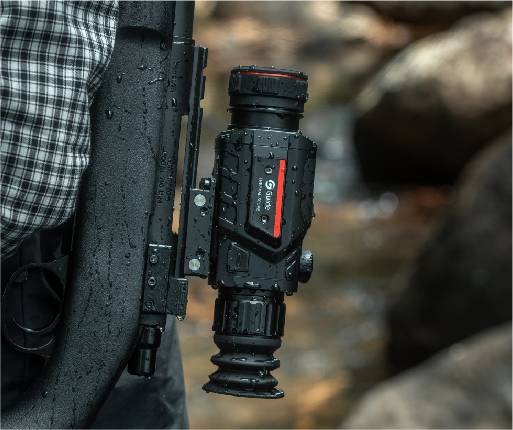

IP67 Protection Rating
With IP67 waterproof and dustproof rating, the TR Series works in high humidity and heavy rain conditions and protects from dust and impact, which features exceptionally high shock resistance up to 800G.
-
-
OTA Upgrade

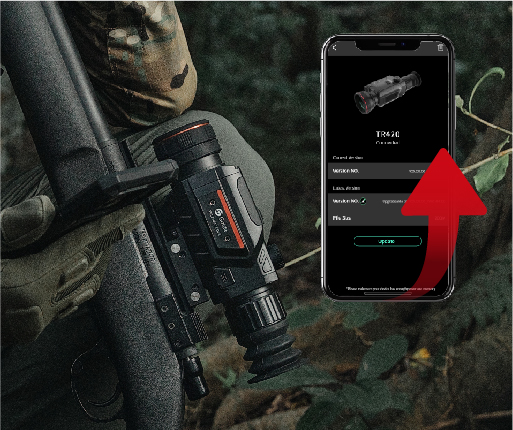

Support device firmware updates by connecting TargetIR for high efficiency.
-
MEDIA GALLERY
Technical Parameters
Model
TR650
ADD TO COMPARE
| Sensor | ||||
|---|---|---|---|---|
| Type | Uncooled VOx Infrared Detector, 8 to 14μm | |||
| Resolution | 640×512@12μm | |||
| NETD | 20mK | |||
| Frame rate | 50 Hz | |||
| Lens | ||||
|---|---|---|---|---|
| Objective lens | 50mm, F1.0 | |||
| Field of view | 8.8°×7.0° | |||
| FOV m@100m | 15×12 | |||
| Magnification | 2.9x~23.2x | |||
| Detection range | 2600m/2800yd | |||
| Display | ||||
|---|---|---|---|---|
| Display type | 0.39'' AMOLED 1024×768 | |||
| Color palettes | White Hot, Black Hot, Red Hot, Green Hot, Iron Red, Blue Hot, Sepia | |||
| Eyepiece | Eye relief: 48 mm; Diopter ± 4; Zoom: 14x | |||
| Hardware | ||||
|---|---|---|---|---|
| WIFI | 2.4G | |||
| Interface | USB Type-C | |||
| Others | Microphone, Bluetooth | |||
| System | ||||
|---|---|---|---|---|
| Recording function | Photo/Video (Audio recording included) | |||
| Memory capacity | 32GB | |||
| Power | ||||
|---|---|---|---|---|
| Battery type | Single, replaceable 18650 battery | |||
| Operating time | 8 hours | |||
| Environmental | ||||
|---|---|---|---|---|
| Operating temp. | -30°C to 50°C / -22°F to +122°F | |||
| Shock | 800G at 1ms half sine pulse (as per IEC60068-2-27) | |||
| Encapsulation | IP67 | |||
| Physical | ||||
|---|---|---|---|---|
| Weight (g/oz) | 682/24.06 | |||
| Size (mm/in) | 219×92×70/8.62×3.62×2.76 | |||
| Standard | Device, Quick-release scope mount, Type-C cable, 5V2A adapter (US, Britain, Australia and Europe), 18650 battery, Battery charger, Lens cover, Eye mask, Quick start guide, Warranty card | |||
| Optional | 18650 battery, Dovetail guide, Bluetooth remote control, Laser rangefinder | |||
