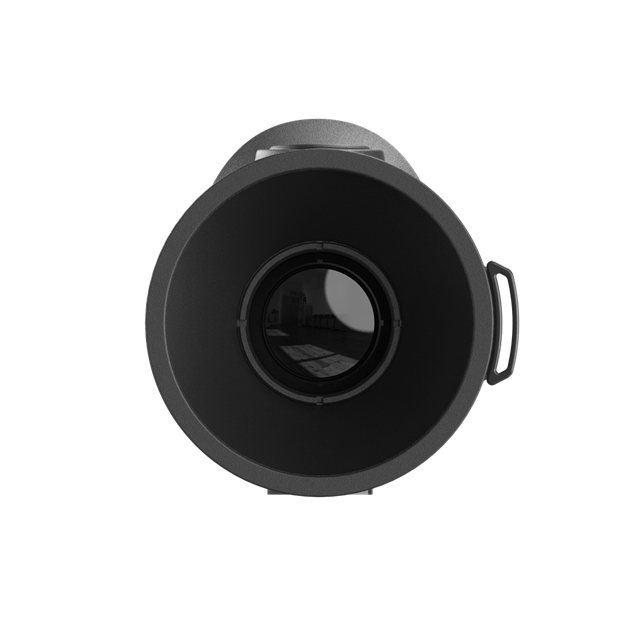

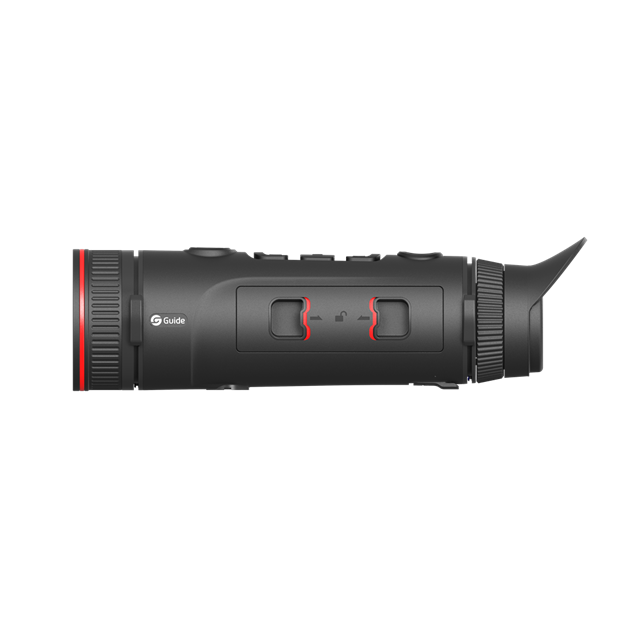

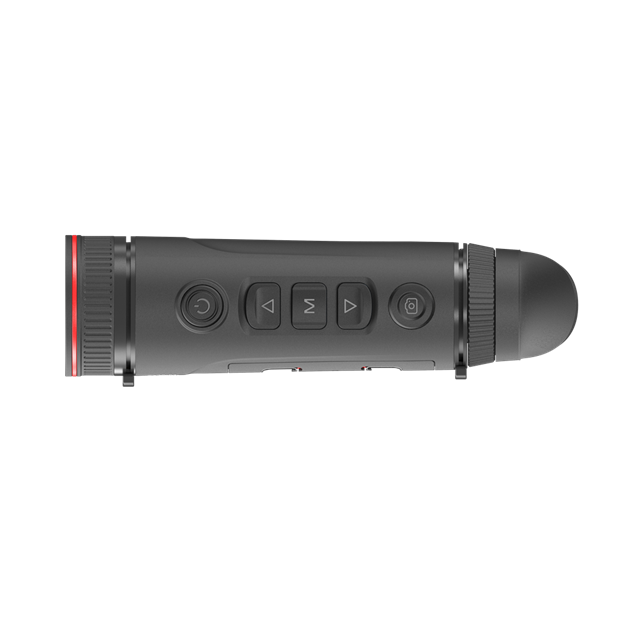

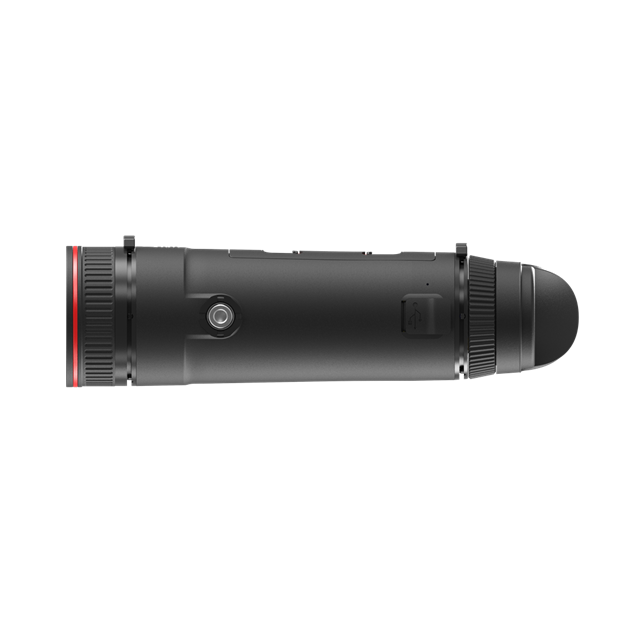

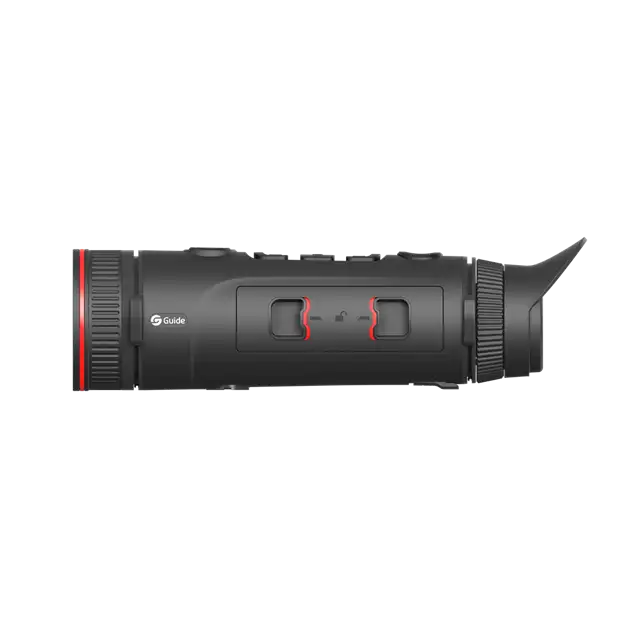

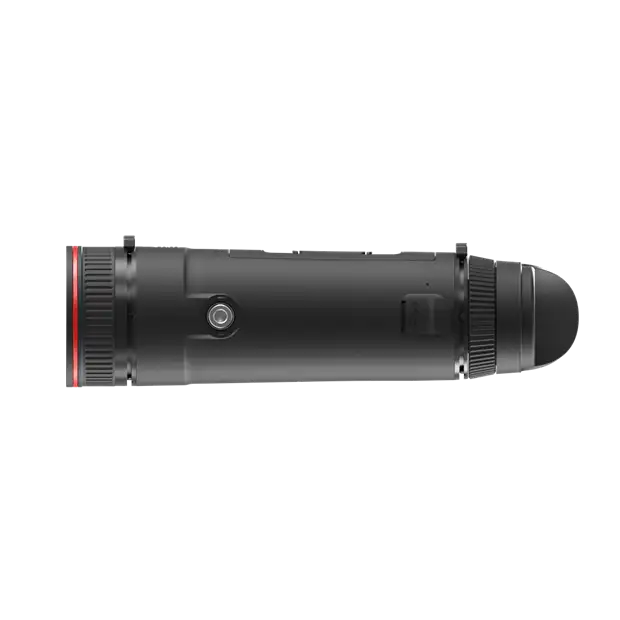

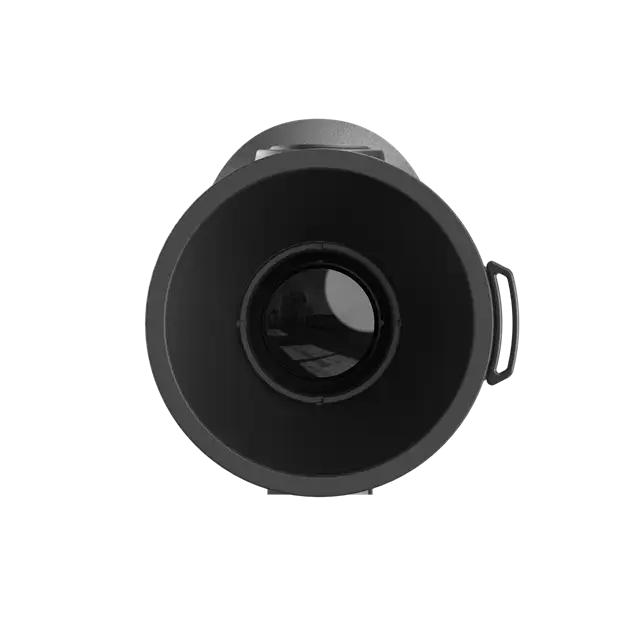

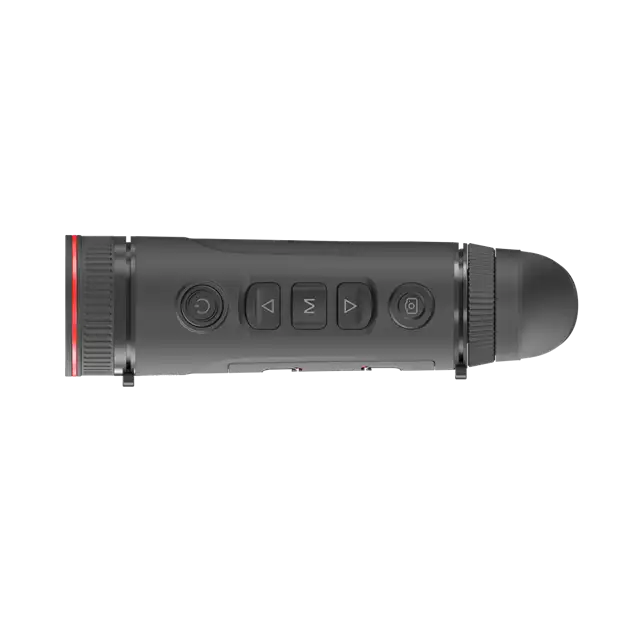

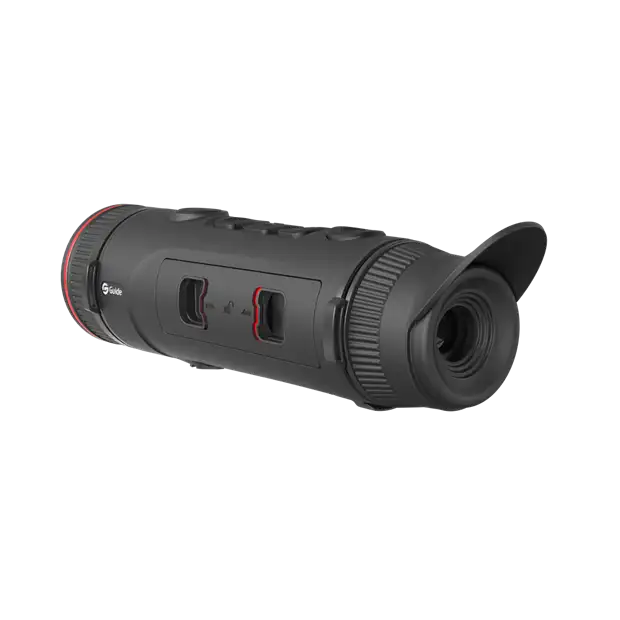

TJ420
Handheld Thermal Imaging Monocular
Embark on nighttime explorations with the TJ Series, a top pick for hunters. Equipped with exceptional thermal imaging technology, this device features a high-sensitivity infrared detector that enables clear night vision. The Full-HD display enhances these benefits, while two-hand operation, video recording, and a 12-hour battery life make it the perfect companion for nighttime escapades.
NETD<25mKDetector
12 hrsBattery
Full-HD 1920x1080AMOLED display
IP67Encapsulation
ADD TO COMPARE
-

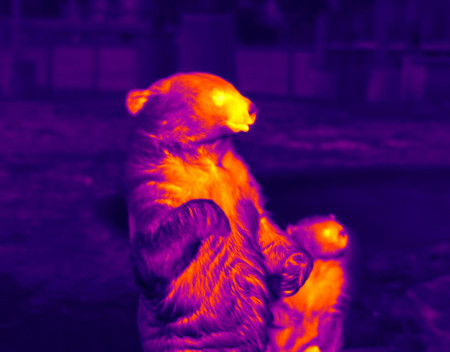

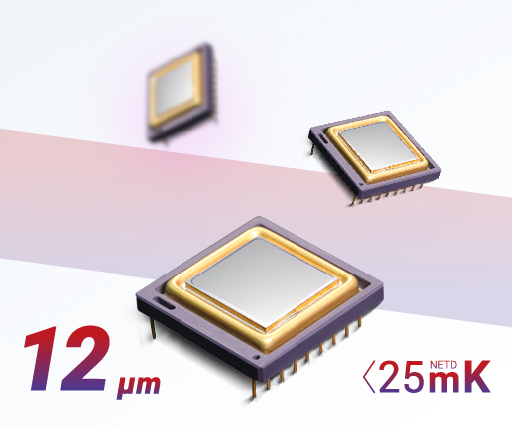

12um high sensitivity infrared detector

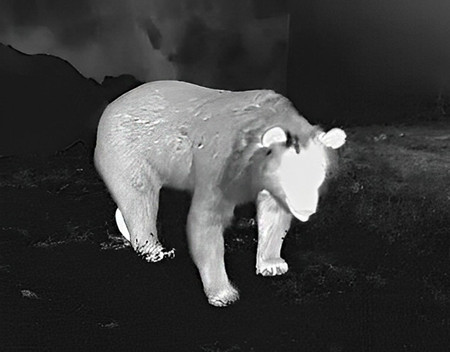

By utilizing a highly sensitive lR detector with a NETD of 25mK, even the slightest temperature differences can be distinguished, resulting in sharper and clearer imaging.
-
-
12h operating time
To support outdoor observation and hunting continuously, TJ Series provides a long 12-hour battery life at -20
℃ to 50℃ (-4°F to 122°F). The standard 18650 batteries can be replaced in the dark, ensuring a delightful user experience without fear of power outages.
-
-

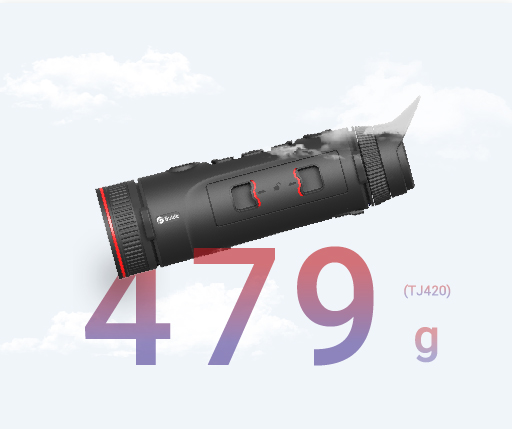

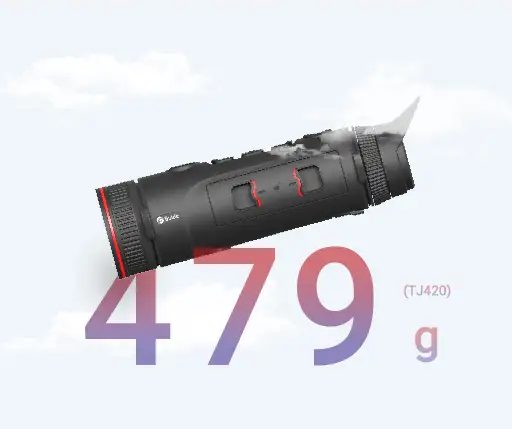

Lightweight
The whole device weighs around 500g, which reduces the burden of equipment and is easy to carry and use outdoors. lts compact design and portable size together bring con-venience to your nighttime explorations.
-
-

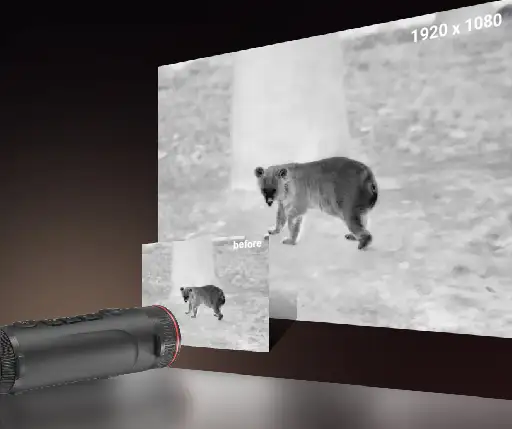

Full-HD 1920x1080 AMOLED display
The eyepiece features a 1920x1080 high-definition AMOLED screen, allowing for a visual experience with vibrant colors and excellent image quality. This significantly enhances the comfort of observation.
-
-

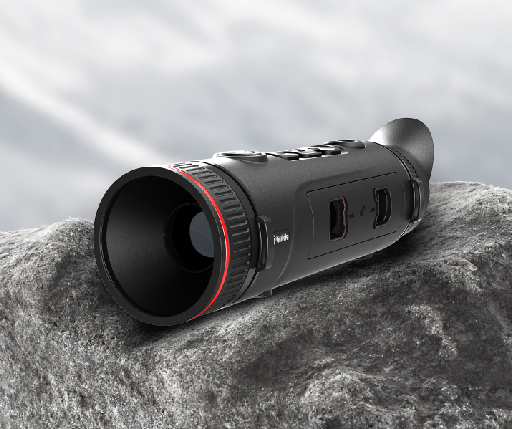

IP67 Waterproof rating
Equipped with an IP67 waterproof rating, ensuring it can withstand the most challenging weather conditions. With this robust protection, you can confidently take your thermal imaging monocular on any adventure.
-
MEDIA GALLERY
Technical Parameters
Model
TJ420
ADD TO COMPARE
| Sensor | ||||
|---|---|---|---|---|
| Type | Uncooled VOx Infrared Detector, 8 to 14μm | |||
| Resolution | 400×300@12μm | |||
| NETD | 25mK | |||
| Frame rate | 50Hz | |||
| Lens | ||||
|---|---|---|---|---|
| Objective lens | 25mm, F1.0 | |||
| Field of view | 11.0°×8.2° | |||
| FOV m@100m | 19×14 | |||
| Magnification | 3.04x~12.16x | |||
| Detection range | 1300m/1400yd | |||
| Display | ||||
|---|---|---|---|---|
| Display type | 0.39'' AMOLED 1920×1080 | |||
| Color palettes | White Hot, Black Hot, Red Hot, Green Hot, Iron Red, Blue Hot, Sepia | |||
| Eyepiece | Eye relief: 16 mm; Diopter: -6 to +6; Zoom: 18x | |||
| Hardware | ||||
|---|---|---|---|---|
| WIFI | 2.4G, 5G | |||
| Interface | USB Type-C (Power supply/USB2.0) | |||
| Others | Microphone, Compass, Gyroscope, Bluetooth | |||
| System | ||||
|---|---|---|---|---|
| Recording function | Photo/Video (Audio recording included) | |||
| Memory capacity | 32GB | |||
| Power | ||||
|---|---|---|---|---|
| Battery type | 2 replaceable 18650 batteries | |||
| Operating time | 12 hours | |||
| Environmental | ||||
|---|---|---|---|---|
| Operating temp. | -20°C to 50°C / -4°F to +122°F | |||
| Encapsulation | IP67 | |||
| Physical | ||||
|---|---|---|---|---|
| Weight (g/oz) | 479/16.90 | |||
| Size (mm/in) | 234×66×66/9.21×2.60×2.60 | |||
| Standard | A device, Wrist strap, Battery charger, 18650 battery×2, 5V2A adapter (US, Britain, Australia and Europe), USB Type-C cable, Quick use guide, Warranty card | |||
| Optional | Bluetooth remote control, 18650 battery | |||
