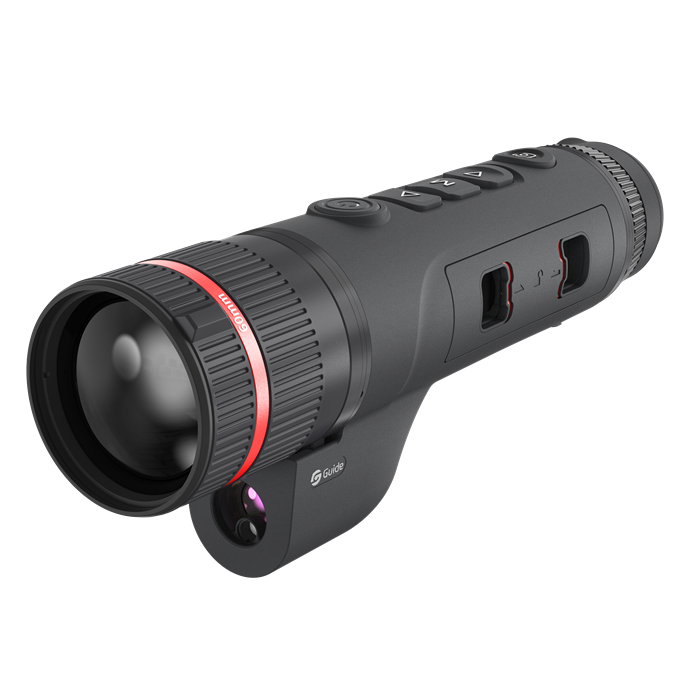

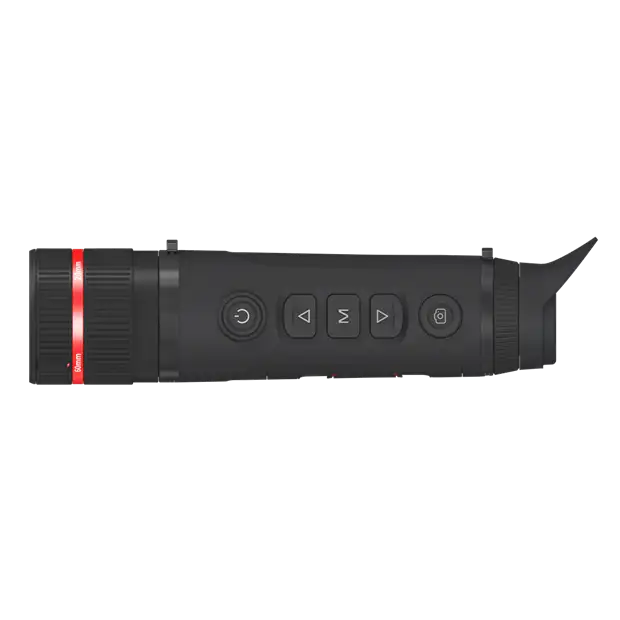

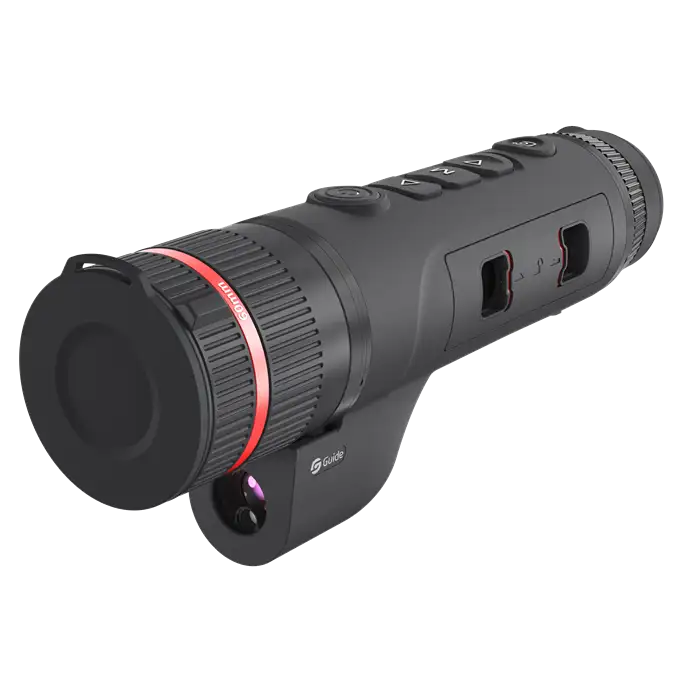

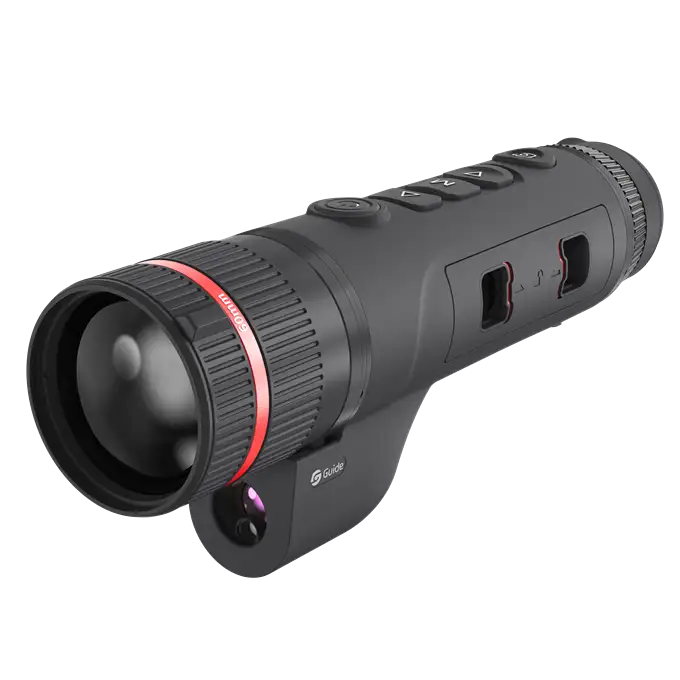

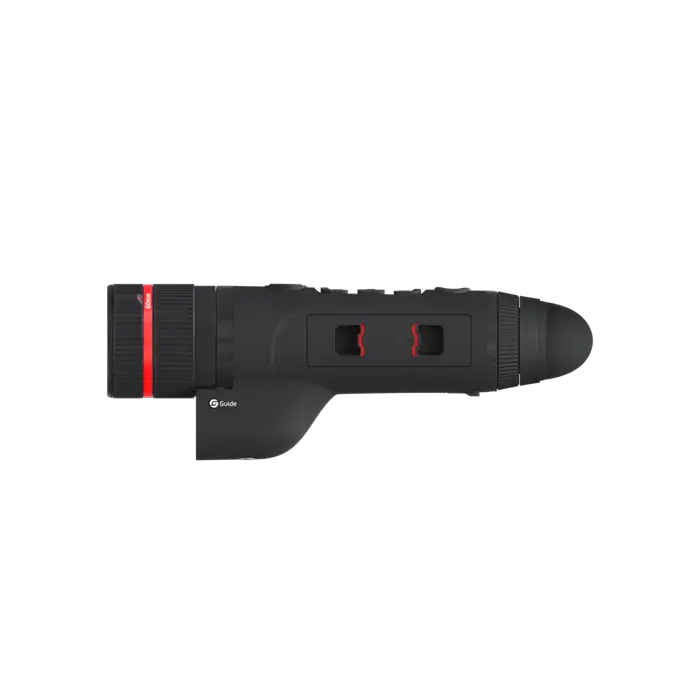

TJ660LZ
Handheld Thermal Imaging Monocular
TJ LRF Zoom Series adapts an integrated 20mm/60mm DFOV lens, allowing you to switch the focal length accordingly, whether it is a large-scale search or a long-distance target identification. The high-sensitivity 12μm infrared detector and full HD display enable clear night vision. Twohanded operation, laser ranging, video recording, and up to 10 hours of battery life make it an ideal partner for your nighttime adventures
20mKNETD
Full-HD 1920x1080AMOLED display
1000mLaser range
IP67Encapsulation
ADD TO COMPARE
-

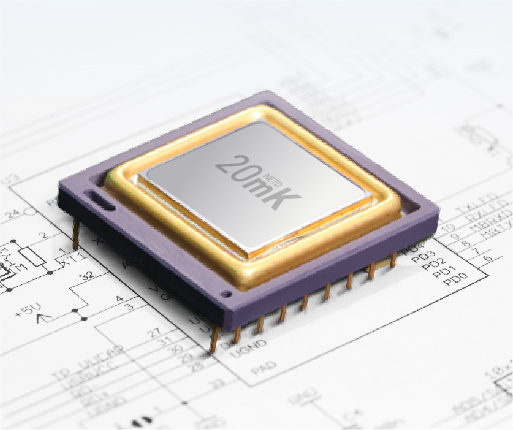

12μm IR detector, NETD down to 20mK
By utilizing a highly sensitive IR detector with a NETD down to 20mK, even the slightest temperature differences can be distinguished, resulting in sharper and clearer imaging.
-
-

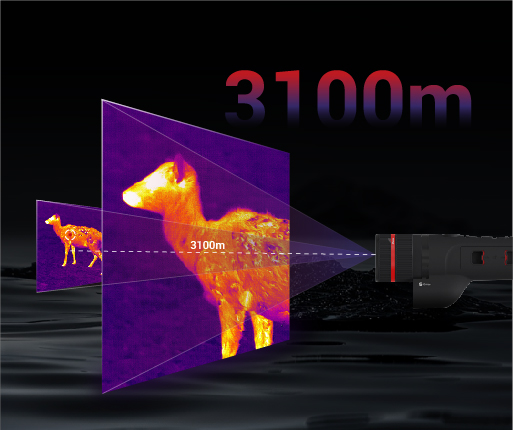

3x optical zoom, detection distance up to 3100m
TJ LRF Zoom Series adapts a 20mm~60mm dual FOV lens, which allows for easily changing the focal lengths and focus fine-tuning. It is a perfect combination of large-scale and long-distance observation, capable of detecting targets up to 3100m.
-
-

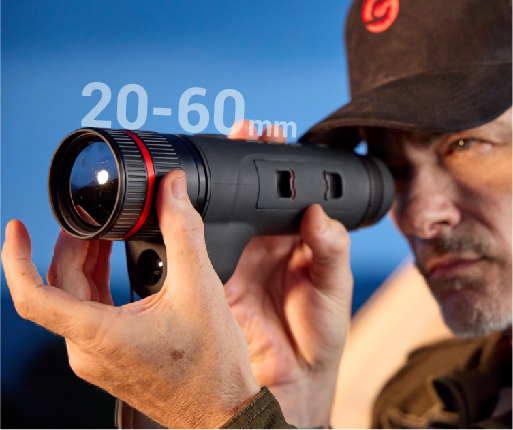

Easily changing the focal lengths
With the well-designed focus ring, TJ LRF Zoom Series allows users to smoothly switch the focal lengths from 20mm to 60mm within 1 second, and fine-tune the focus to get the perfect image of targets.
-
-
Ultra-large display
Optimal visual experiences
To present a better visual experience, hence improving the efficiency and comfort of outdoor exploration, TJ LRF Zoom has upgraded the display to provide a stunning visual effect like a 70-inch home theater at 2.5m distance.
-
-

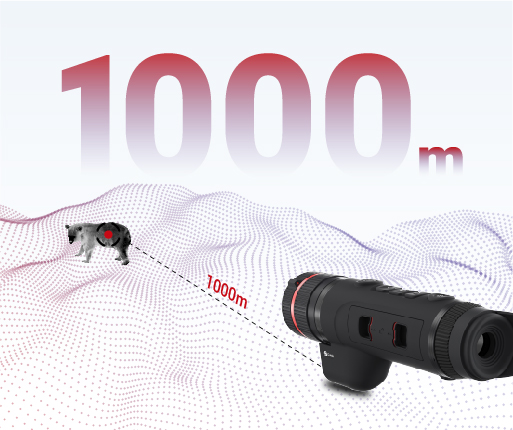

1000m laser rangefinder
The built-in laser rangefinder provides a long detection range of up to 1000m, improving the capability to obtain the target distance and the long-distance perception.
-
-

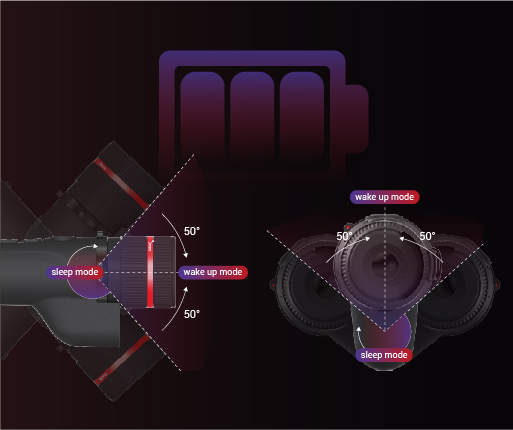

Intelligent sleep mode
TJ LRF Zoom developed an intelligent function of automatically switching the sleep mode and wake up mode by recognizing the device’s posture, which will lead to lower power consumption and longer battery life.
-
Technical Parameters
Model
TJ660LZ
ADD TO COMPARE
| Sensor | ||||
|---|---|---|---|---|
| Type | Uncooled VOx Infrared Detector, 8 to 14μm | |||
| Resolution | 640×512@12μm | |||
| NETD | 20mK | |||
| Frame rate | 50Hz | |||
| Lens | ||||
|---|---|---|---|---|
| Objective lens | 20mm, F0.9; 60mm, F1.1 | |||
| Field of view | 21.7×17.5; 7.3×5.9 | |||
| FOV m@100m | 38×31; 13×10 | |||
| Magnification | 1.5x~12.0x; 4.5x~36x | |||
| Detection range | 1000m/1090yd; 3100m/3350yd | |||
| Display | ||||
|---|---|---|---|---|
| Display type | 0.39'' AMOLED 1920×1080 | |||
| Color palettes | White Hot, Black Hot, Red Hot, Green Hot, Iron Red, Blue Hot, Sepia | |||
| Eyepiece | Eye relief: 16 mm; Diopter: -6 to +6; Zoom: 18x | |||
| Hardware | ||||
|---|---|---|---|---|
| Laser rangefinder | 1000m/1090yd | |||
| WIFI | 2.4G, 5G | |||
| Interface | USB Type-C (Power supply/USB2.0) | |||
| Others | Microphone, Compass, Gyroscope, Bluetooth | |||
| System | ||||
|---|---|---|---|---|
| Recording function | Photo/Video (Audio recording included) | |||
| Memory capacity | 64GB | |||
| Power | ||||
|---|---|---|---|---|
| Battery type | 2 replaceable 18650 batteries | |||
| Operating time | 10 hours | |||
| Environmental | ||||
|---|---|---|---|---|
| Operating temp. | -20°C to 50°C / -4°F to +122°F | |||
| Encapsulation | IP67 | |||
| Physical | ||||
|---|---|---|---|---|
| Weight (g/oz) | 784/27.65 | |||
| Size (mm/in) | 259×97×66/10.20×3.82×2.60 | |||
| Standard | A device, Wrist strap, Battery charger, 18650 battery×2, 5V2A adapter (US, Britain, Australia and Europe), USB Type-C cable, Quick use guide, Warranty card | |||
| Optional | Bluetooth remote control, 18650 battery | |||
