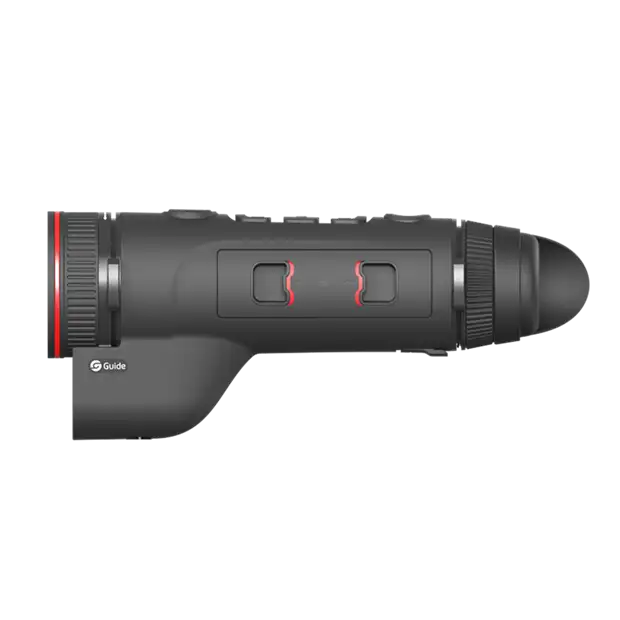

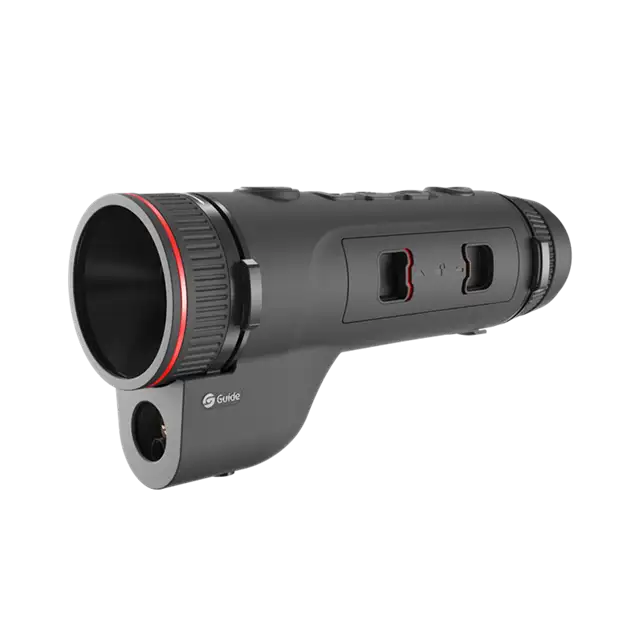

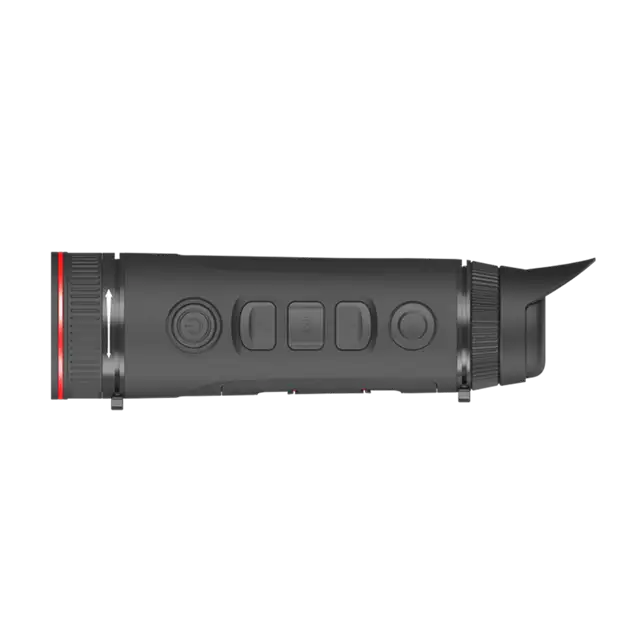

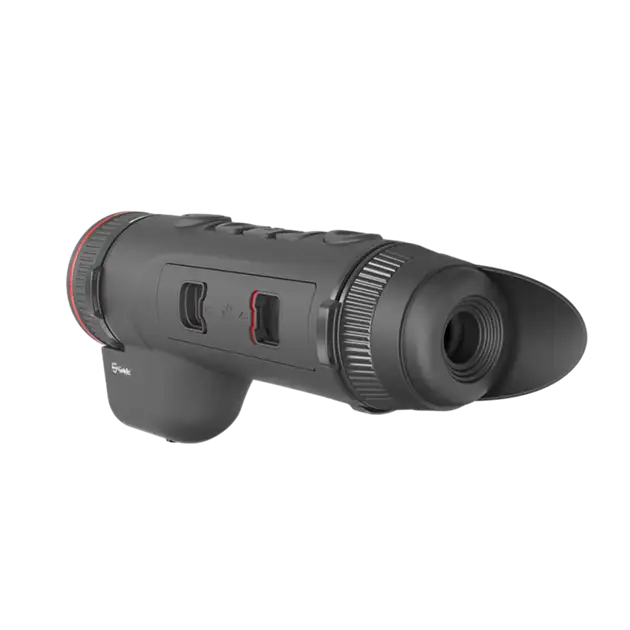

TJ430L
Handheld Thermal Imaging Monocular
Embark on nighttime explorations with the TJ LRF Series, a top pick for hunters. Equipped with exceptional thermal imaging technology, this device features a high-sensitivity infrared detector that enables clear night vision. The Full-HD display enhances these benefits, while two-hand operation, laser ranging, video recording, and a 12-hour battery life make it the perfect companion for nighttime escapades.
NETD<25mKDetector
Full-HD 1920x1080AMOLED display
1000mLaser range
IP67Encapsulation
ADD TO COMPARE
-
Welcome to the big screens
TJ LRF Series - Handheld Thermal Imaging Monocular
-
-

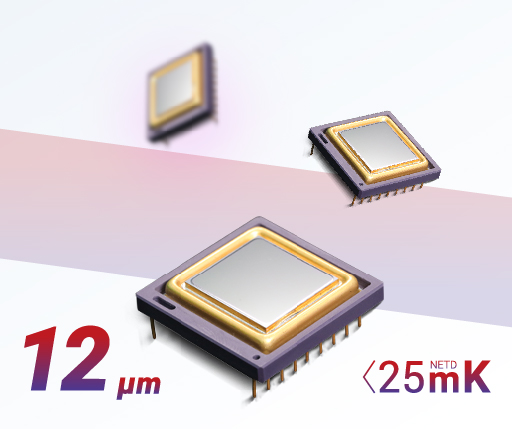

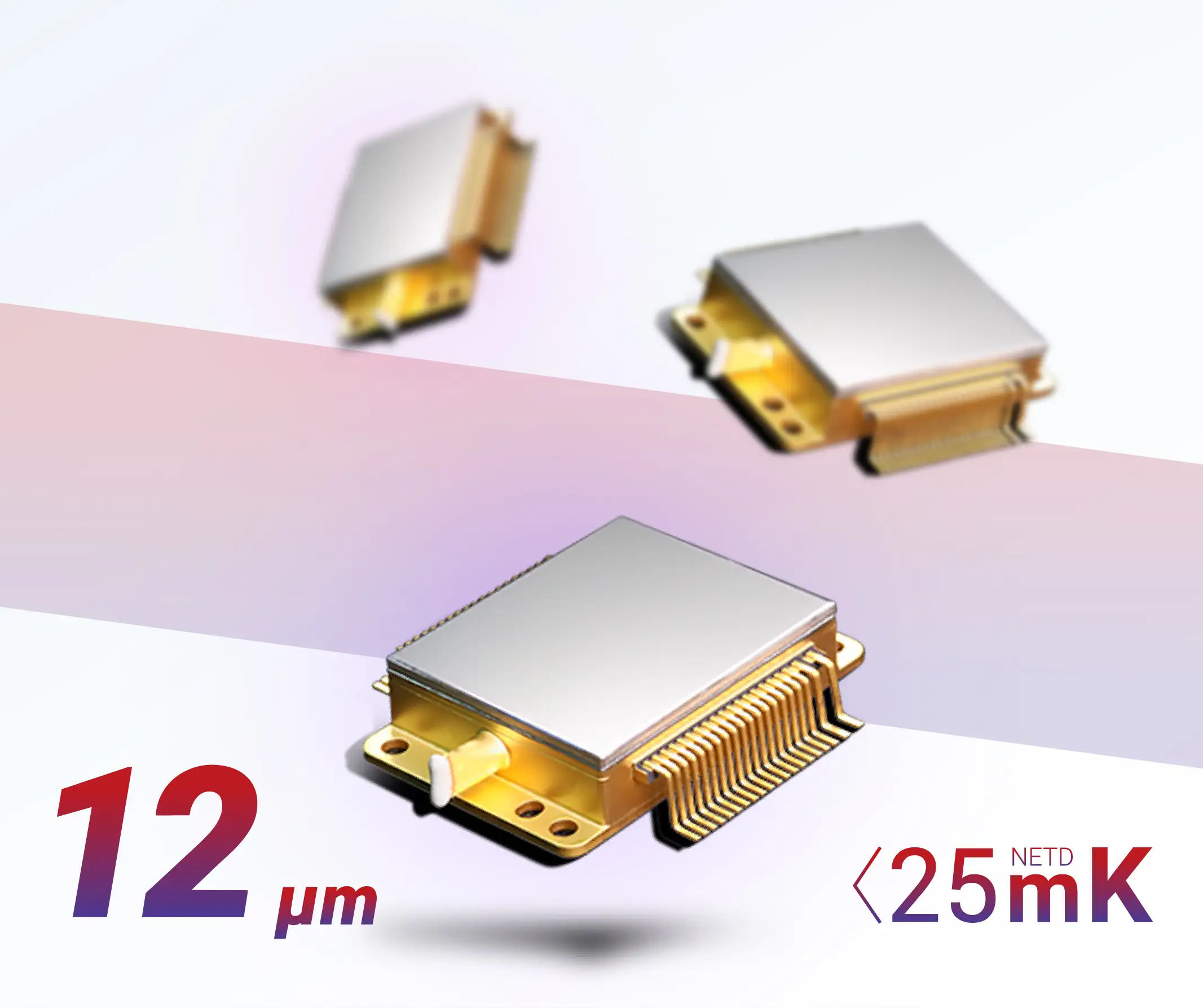

12um high sensitivity infrared detector
By utilizing a highly sensitive IR detector with a NETD<25mK, even the slightest temperature differences, can be distinguished resulting in sharper and clearer imaging
-
-

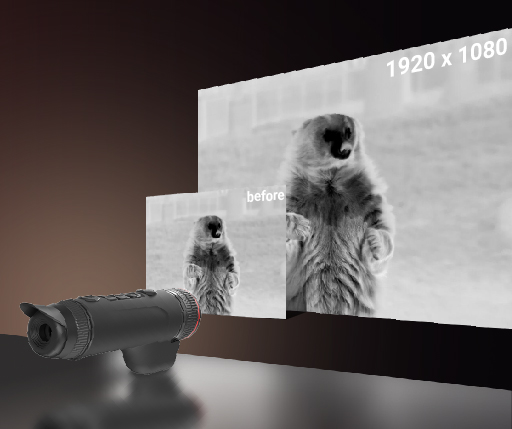

1920 X 1080 AMOLED Display
The eyepiece features a 1920x1080 high-definition AMOLED screen, allowing for a visual experience with vibrant colors and excellent image quality. This significantly enhances the comfort of observation.
-
-

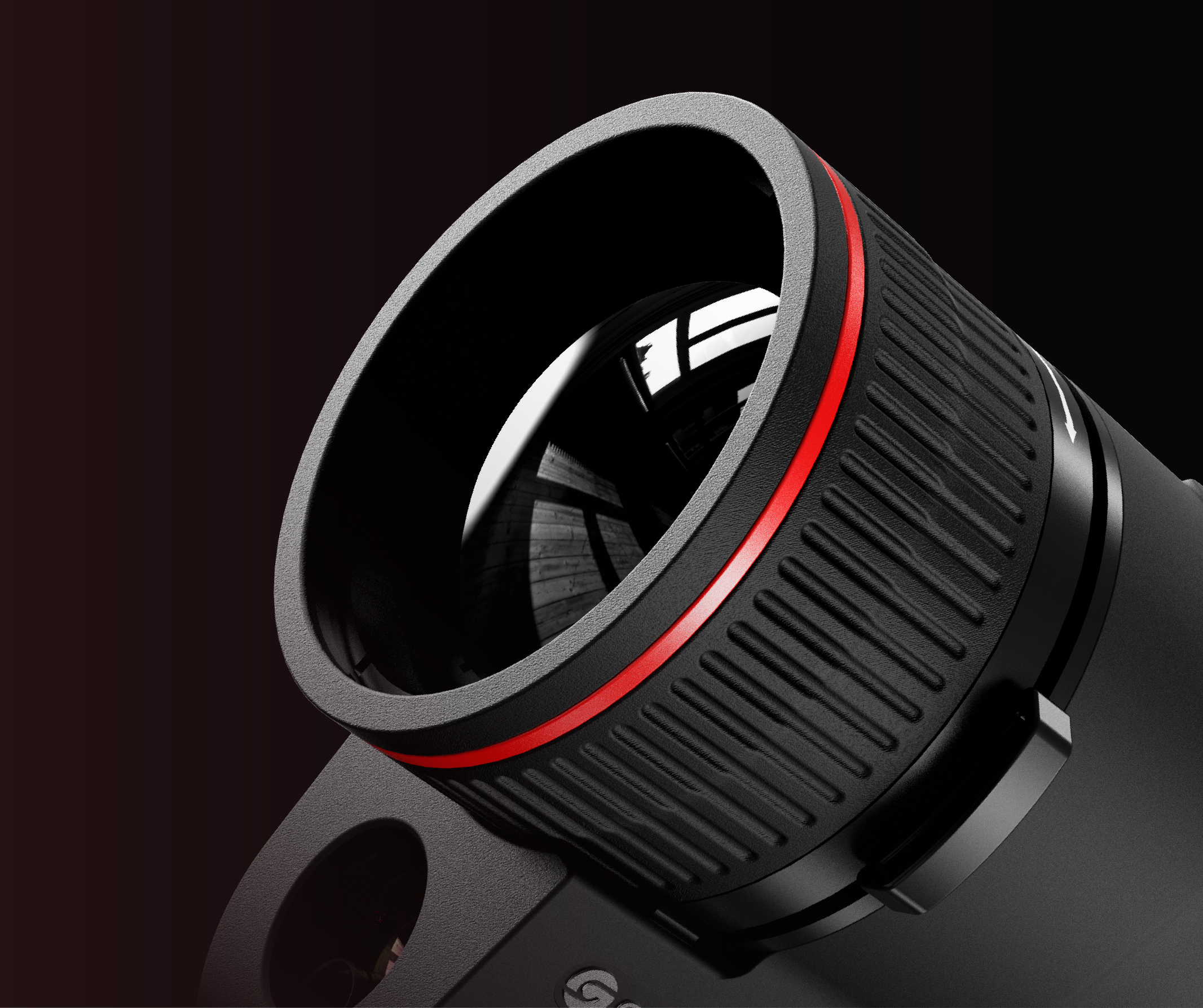

25/35/50mm F1.0 focal length
Multiple focal lengths give TJLRF Series stronger capabili-ties and more options in dif-ferent environments. The maximum 50mm F1.0 lens can clearly indicate targets within 2000m, which is convenient for observation and recording.
-
-

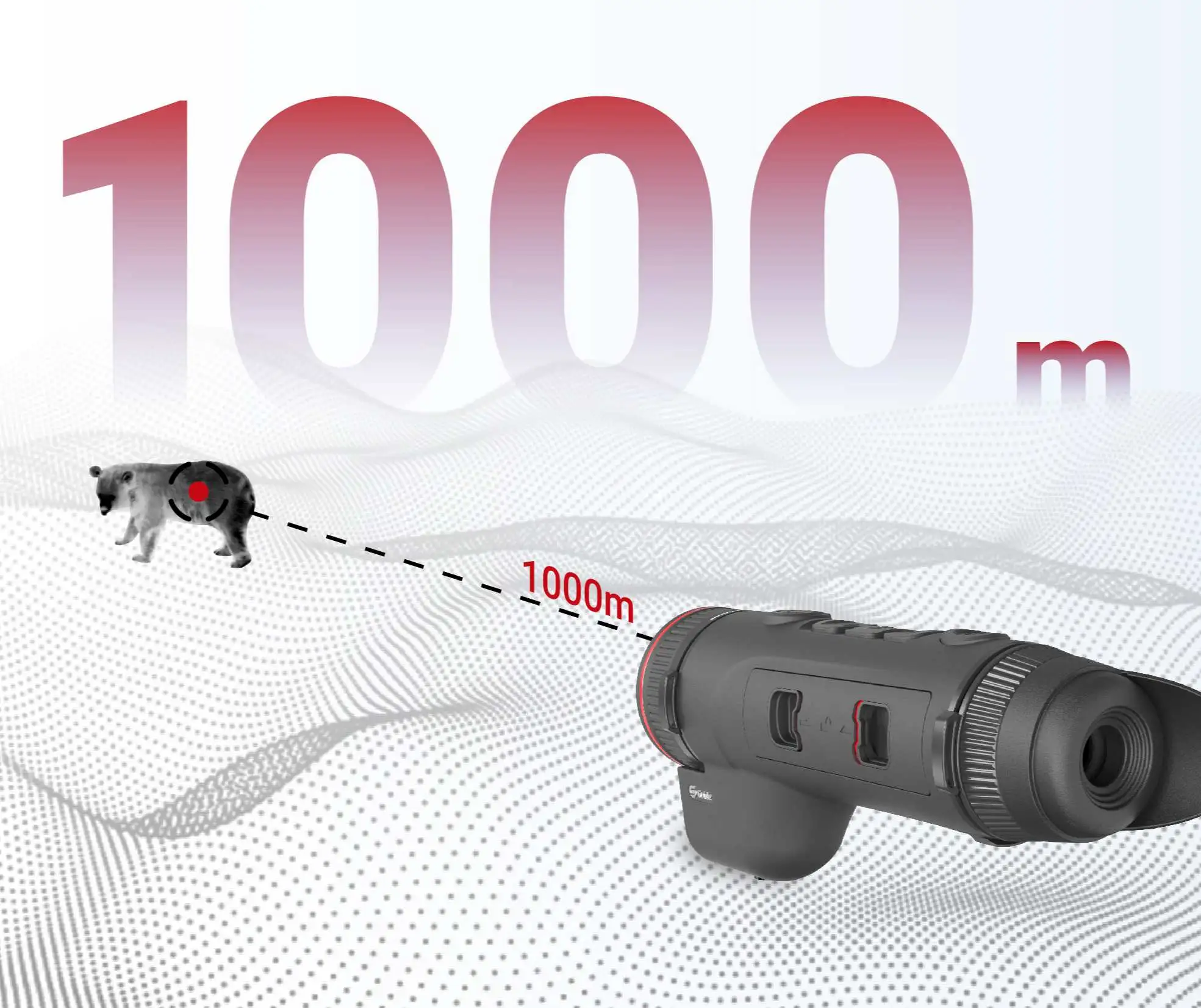

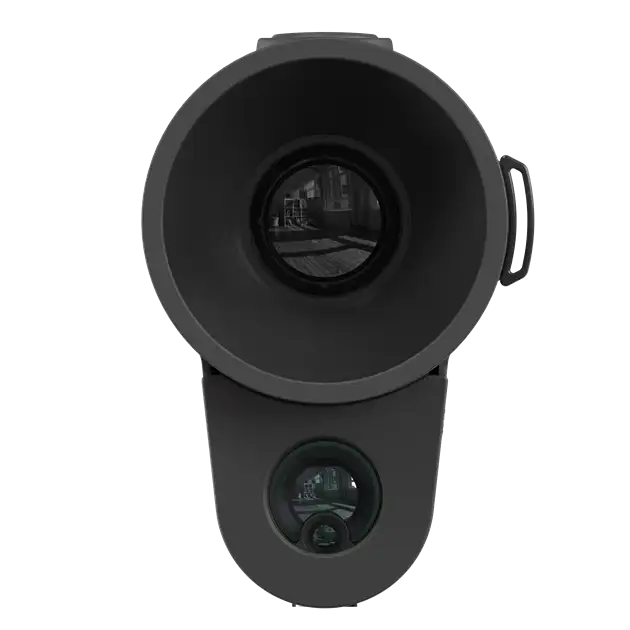

1000m laser ranging
The built-in laser rangefinder provides a long detection range up to 1000m, improving the capability to obtain the target distance and the long-distance perception.
-
Technical Parameters
Model
TJ430L
ADD TO COMPARE
| Sensor | ||||
|---|---|---|---|---|
| Type | Uncooled VOx Infrared Detector, 8 to 14μm | |||
| Resolution | 400×300@12μm | |||
| NETD | 25mK | |||
| Frame rate | 50Hz | |||
| Lens | ||||
|---|---|---|---|---|
| Objective lens | 35mm, F1.0 | |||
| Field of view | 7.9°×5.9° | |||
| FOV m@100m | 14×10 | |||
| Magnification | 4.25x~17.0x | |||
| Detection range | 1800m/1950yd | |||
| Display | ||||
|---|---|---|---|---|
| Display type | 0.39'' AMOLED 1920×1080 | |||
| Color palettes | White Hot, Black Hot, Red Hot, Green Hot, Iron Red, Blue Hot, Sepia | |||
| Eyepiece | Eye relief: 16 mm; Diopter: -6 to +6; Zoom: 18x | |||
| Hardware | ||||
|---|---|---|---|---|
| Laser rangefinder | 1000m/1090yd | |||
| WIFI | 2.4G, 5G | |||
| Interface | USB Type-C (Power supply/USB2.0) | |||
| Others | Microphone, Compass, Gyroscope, Bluetooth | |||
| System | ||||
|---|---|---|---|---|
| Recording function | Photo/Video (Audio recording included) | |||
| Memory capacity | 32GB | |||
| Power | ||||
|---|---|---|---|---|
| Battery type | 2 replaceable 18650 batteries | |||
| Operating time | 12 hours | |||
| Environmental | ||||
|---|---|---|---|---|
| Operating temp. | -20°C to 50°C / -4°F to +122°F | |||
| Encapsulation | IP67 | |||
| Physical | ||||
|---|---|---|---|---|
| Weight (g/oz) | 583/20.56 | |||
| Size (mm/in) | 243×97×66/9.57×3.82×2.60 | |||
| Standard | A device, Wrist strap, Battery charger, 18650 battery×2, 5V2A adapter (US, Britain, Australia and Europe), USB Type-C cable, Quick use guide, Warranty card | |||
| Optional | Bluetooth remote control, 18650 battery | |||
