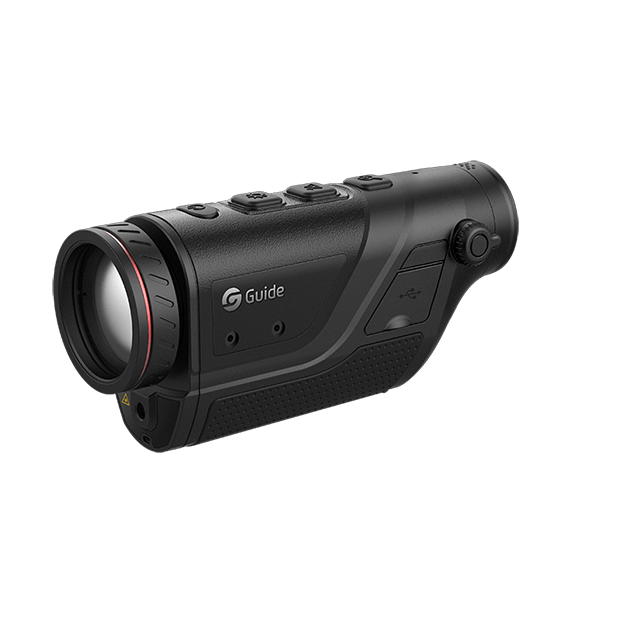

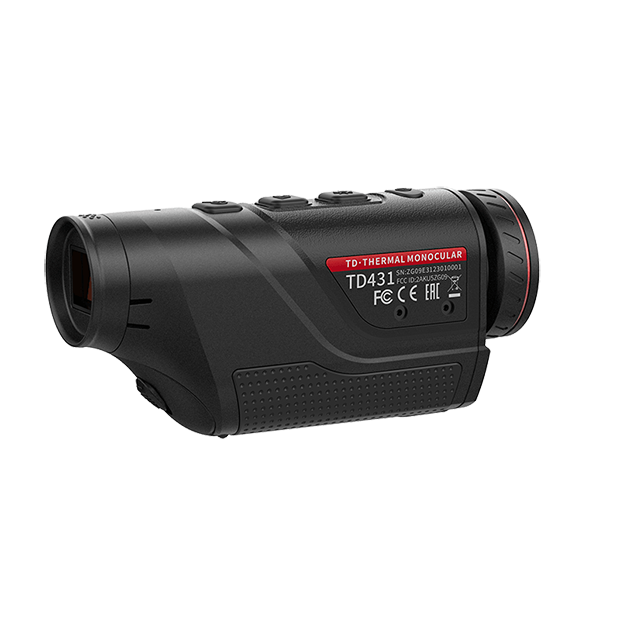

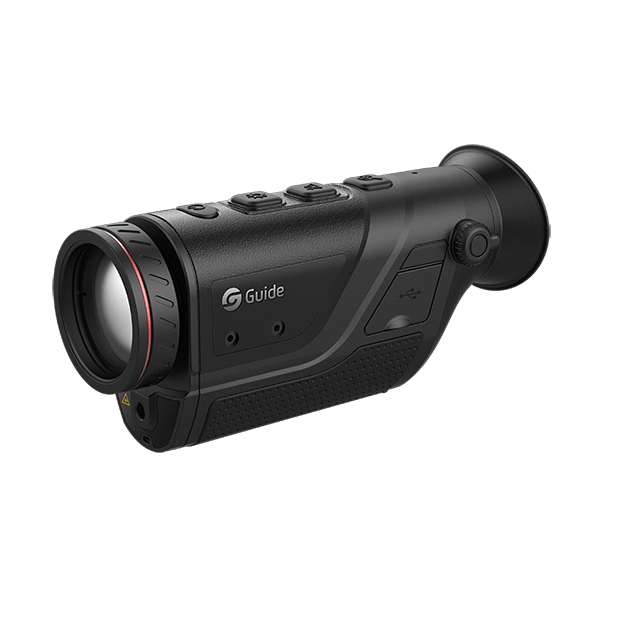

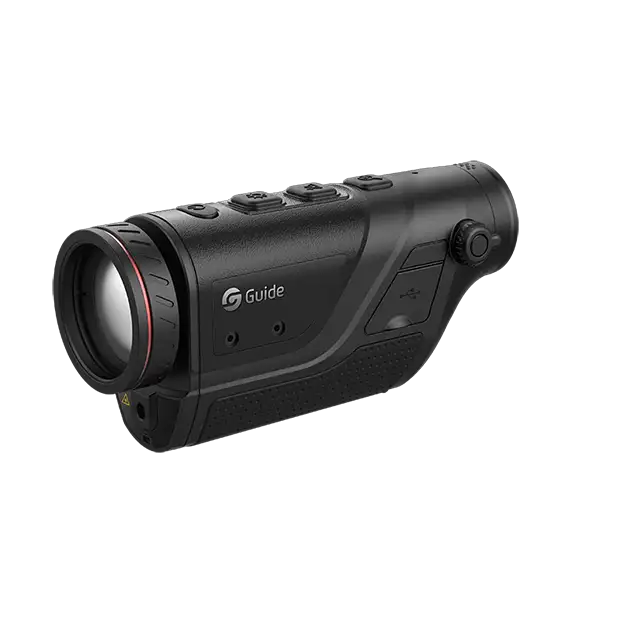

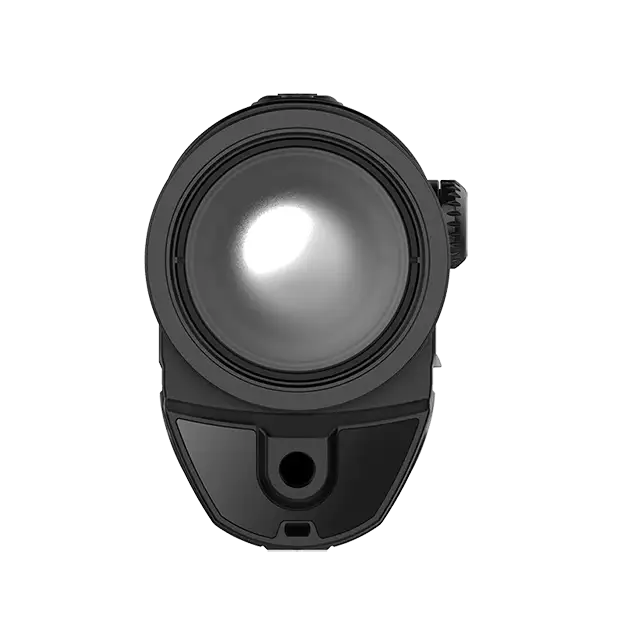

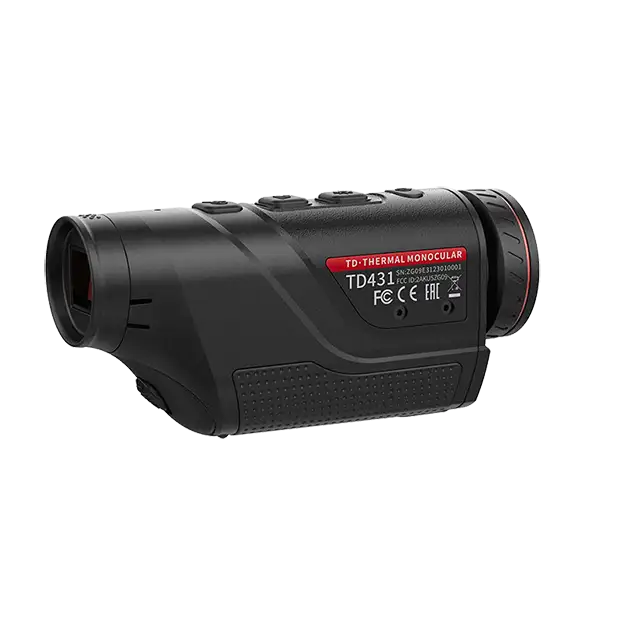

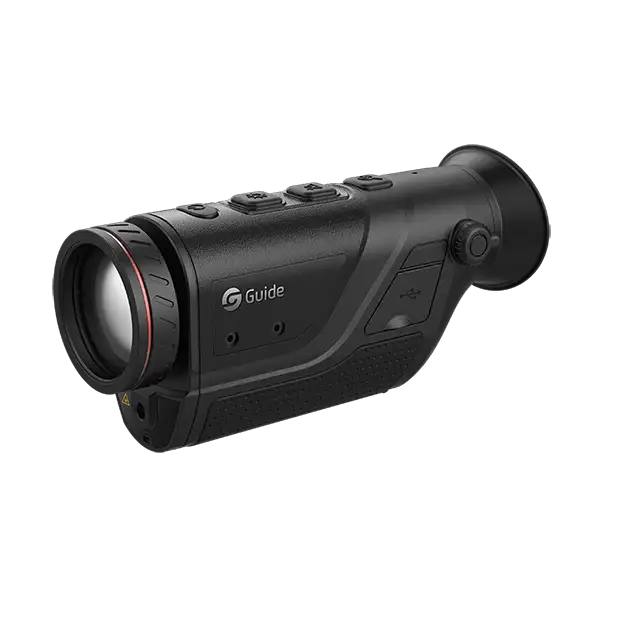

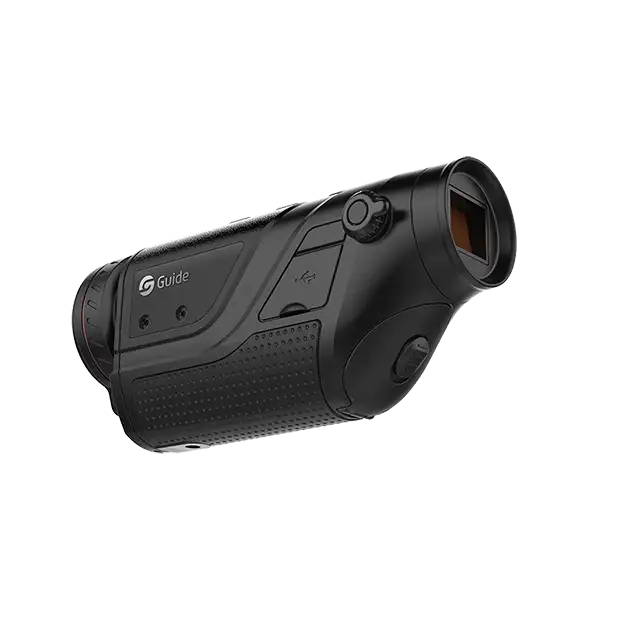

TD431
Handheld Thermal Imaging Monocular
TD Gen2 Series follows the design of traditional optical equipment. It is a lightweight, portable, simple operation with a wide range of application scenarios for handheld thermal imaging monoculars. With a high-brightness AMOLED display, TD Gen2 Series provides clear imaging and a comfortable viewing experience with a battery life of up to 10 hours, making it the ideal equipment for outdoor night vision.
384x288IR Resolution
35mm/F1.0Focal Length
ManualFocusing
10 HoursBattery Life
ADD TO COMPARE
-
Tiny and Powerful
A lightweight body, which can be controlled by one hand, is comfortable to hold and has no burden to carry and explore.
-
-

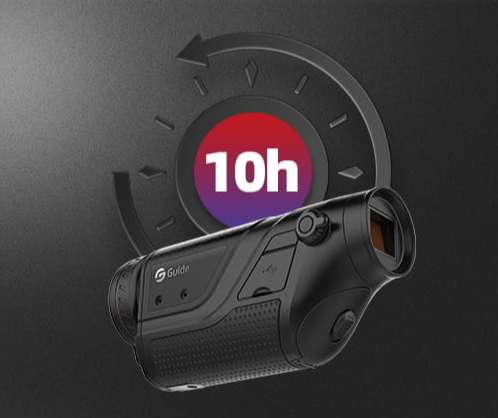

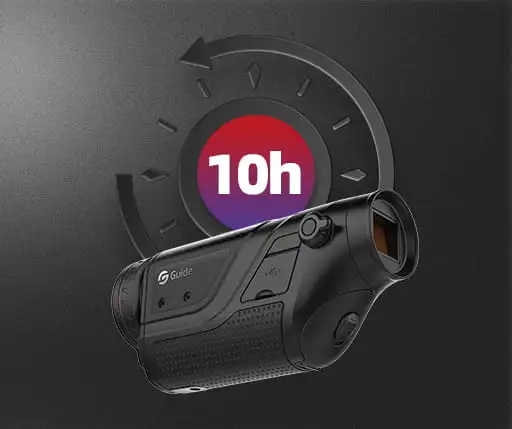

10 Hours Strong Battery Life
Over 10 hours of active use, 3 hours improvement over the previous generation. Standard 18650 battery, easy to purchase.
-
-

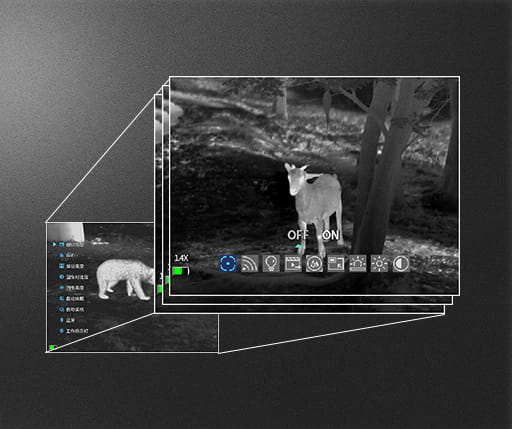

New User Interface design
New user interface design to simplify operation; iconized operation without language restrictions.
-
-
Real-time Sharing by WIFI
Connect the APP on the phone via WIFI, sharing the wonderful moment in real-time.
-
-

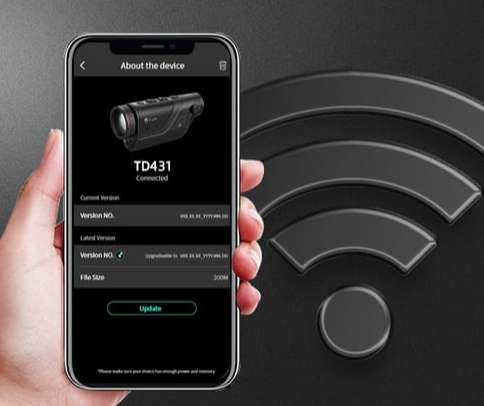

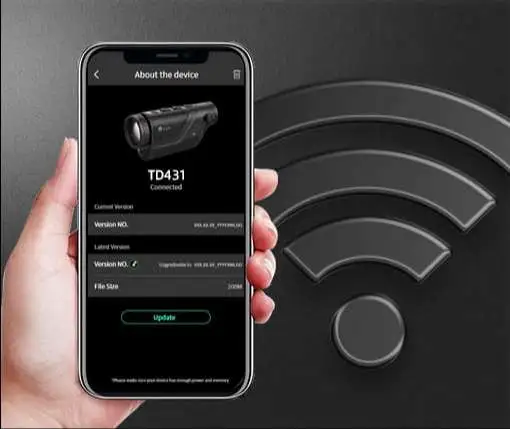

OTA Upgrade
Support device firmware updates by connecting to TargetIR APP for high efficiency.
-
MEDIA GALLERY
Technical Parameters
Model
TD431
ADD TO COMPARE
| Sensor | ||||
|---|---|---|---|---|
| Type | Uncooled VOx Infrared Detector, 8 to 14μm | |||
| Resolution | 384×288@12μm | |||
| NETD | 35mK | |||
| Frame rate | 50Hz | |||
| Lens | ||||
|---|---|---|---|---|
| Objective lens | 35mm, F1.0 | |||
| Field of view | 7.5°×5.6° | |||
| FOV m@100m | 13×10 | |||
| Magnification | 2.6x~10.4x | |||
| Detection range | 1800m/1950yd | |||
| Display | ||||
|---|---|---|---|---|
| Display type | 0.23'' AMOLED 640×400 | |||
| Color palettes | Black Hot, White Hot, Red Hot, Iron Hot, Blue Hot | |||
| Eyepiece | Eye relief: 12 mm; Diopter: -4 to +2; Zoom: 18x | |||
| Hardware | ||||
|---|---|---|---|---|
| WIFI | 2.4G | |||
| Interface | USB Type-C | |||
| Power | ||||
|---|---|---|---|---|
| Battery type | Single, replaceable 18650 battery | |||
| Operating time | 10 hours | |||
| Environmental | ||||
|---|---|---|---|---|
| Encapsulation | IP66 | |||
| Physical | ||||
|---|---|---|---|---|
| Weight (g/oz) | 345/12.17 | |||
| Size (mm/in) | 150×49×74/5.91×1.93×2.91 | |||
| Standard | A device, lens cover and lanyard, Wrist strap, Carry bag, Eye mask, Battery charger, single 18650 battery, USB Type-C cable, Quick use guide, Warranty card | |||
