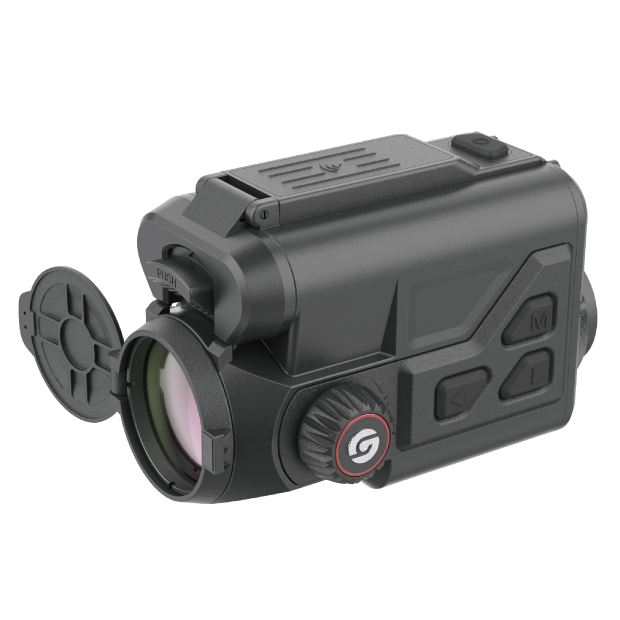

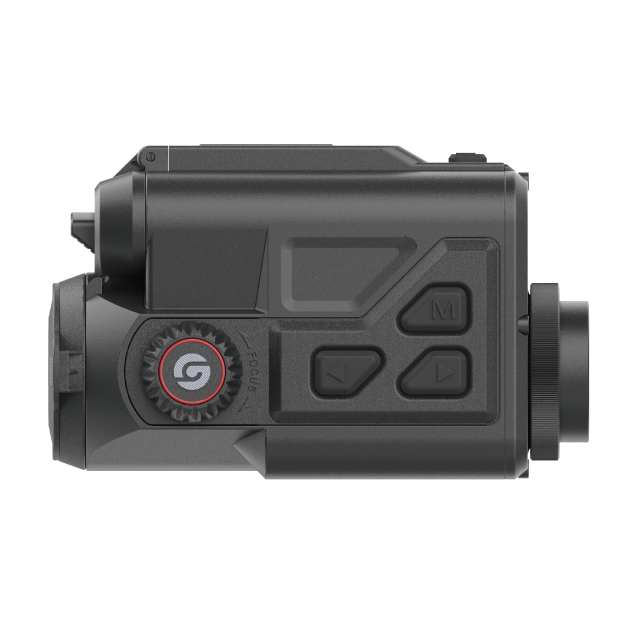

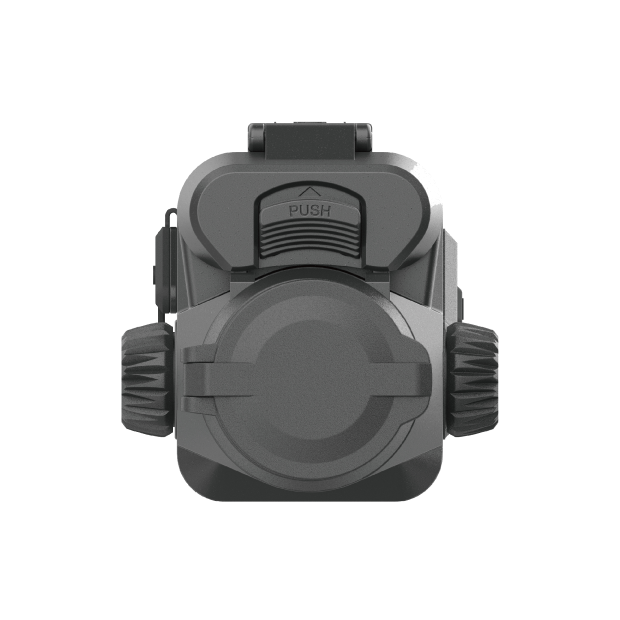

TB430
Clip-on Thermal Imaging Attachment
The TB Series bridges the gap between precision and portability. The magnesium alloy housing decreases weight while increasing precision. The weights are over 20% lighter than those of other similar products. It is also more compact than our previous clip-on. Meanwhile, a Full-HD AMOLED display is capable, a wider viewing angle, and richer color. It is the ideal partner for relax hunting.
High sensitivityNETD<25mK
Display1920x1080
Operating time12h
EncapsulationIP68
ADD TO COMPARE
-
12μm high sensitivity infrared detector
By utilizing a highly sensitive IR detector with a NETD<25mK, even the slightest temperature differences can be distinguished, resulting in sharper and clearer imaging.
-
-
1920x1080 AMOLED Display
The eyepiece features a 1920x1080 high-definition AMOLED screen, allowing for a visual experience with vibrant colors and excellent image quality. This significantly enhances the comfort of observation.
-
-
Compact design, lightweight and portable
The body shell is made of a lighter magnesium alloy, making it more compact and easier to carry and install.
-
-

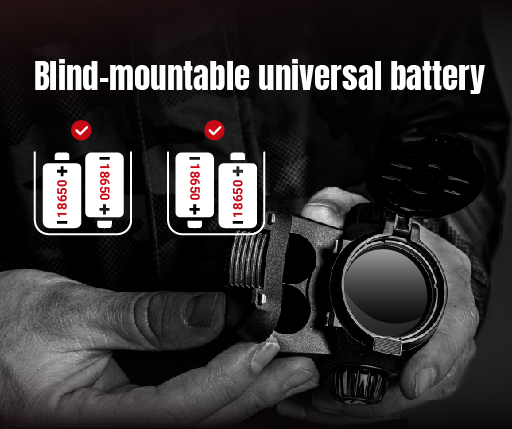

Blind-mountable universal battery
Utilizing standard 18650 batteries, equipped with a safety circuit protection design. When replacing the batteries, simply ensure that the positive and negative poles of the two cells are oriented oppositely, reducing the burden of identification and memory.
-
-

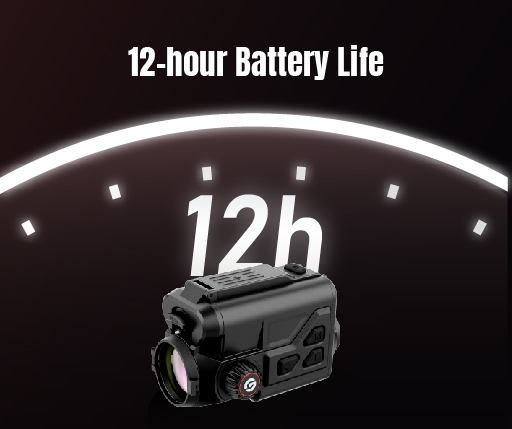

12-hour Battery Life
Experiencing wild adventures with power energy consumption, lightweight design, and enduring performance.
-
-
IP68 Conquering Wind and Rain
Superior waterproof performance ensures reliable operation in the harshest conditions. Shock resistance up to 1000G/ms.
-
MEDIA GALLERY
Technical Parameters
Model
TB430
ADD TO COMPARE
| Sensor | ||||
|---|---|---|---|---|
| Type | Uncooled VOx Infrared Detector, 8 to 14μm | |||
| Resolution | 400×300@12μm | |||
| NETD | 25mK | |||
| Frame rate | 50Hz | |||
| Lens | ||||
|---|---|---|---|---|
| Objective lens | 35mm, F1.0 | |||
| Field of view | 7.8°×5.9° | |||
| FOV m@100m | 14×10 | |||
| Magnification | 1x | |||
| Detection range | 1800m/1950yd | |||
| Display | ||||
|---|---|---|---|---|
| Display type | 0.39'' AMOLED 1920×1080 | |||
| Color palettes | White Hot, Black Hot, Red Hot, Green Hot, Iron Red, Blue Hot, Sepia | |||
| Eyepiece | Eye relief: 20mm; Zoom: 6.4x | |||
| Hardware | ||||
|---|---|---|---|---|
| WIFI | 2.4G, 5G | |||
| Interface | USB Type-C (Power supply/USB2.0) | |||
| Others | Microphone, Bluetooth | |||
| System | ||||
|---|---|---|---|---|
| Recording function | Photo/Video (Audio recording included) | |||
| Memory capacity | 32GB | |||
| Power | ||||
|---|---|---|---|---|
| Battery type | 2 replaceable 18650 batteries | |||
| Operating time | 12 hours | |||
| Environmental | ||||
|---|---|---|---|---|
| Operating temp. | -20°C to 50°C / -4°F to +122°F | |||
| Shock | 1000G at 1ms half sine pulse (as per IEC60068-2-27) | |||
| Encapsulation | IP68 | |||
| Physical | ||||
|---|---|---|---|---|
| Weight (g/oz) | 425/14.99 | |||
| Size (mm/in) | 128×79×79/5.04×3.11×3.11 | |||
| Standard | A device, Battery charger, 18650 battery×2, 5V2A adapter (US, Britain, Australia and Europe), USB Type-C cable, Quick use guide, Warranty card | |||
| Optional | 18650 battery, Bluetooth remote control, Cover ring adapter | |||
