TB650P

Thermal Imaging Attachment

The TB Pro Series perfectly balances precision and portability. The magnesium alloy housing decreases weight while increasing precision. The weights are over 20% lighter than those of other similar products. It is also more compact than our previous clip-on. Meanwhile, a Full-HD AMOLED display is capable, a wider viewing angle, and richer color. It is the ideal partner for relax hunting

NETD20mK

AMOLED Display1920×1080

Detection Range2600m

EncapsulationIP68

  • 1.png
  • 2.png
  • 3.png
  • 4.png
  • 5.png
  • 6.png

banner_TB P.jpg
  • 12μm infrared detector

    TB Pro Series adapts the high-sensitive 12μm infrared detector with NETD down to 20mK. The advanced detector can distinguish the slightest differences and changes in temperature.

    • TB650P--11.jpg

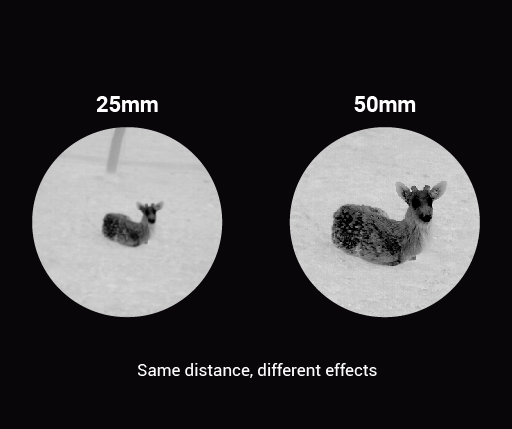

  • 50mm focal length

    TB Pro Series utilizes a longer focal length of 50mm to provide a longer observation distance and more image details than the common lens of 25/35mm

    • TB650P--12.jpg

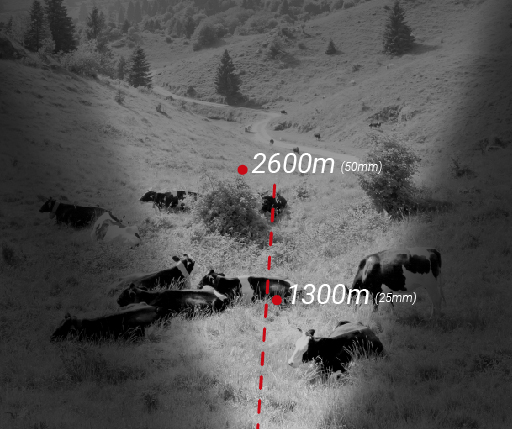

  • 2600m detection range

    A maximum detection range of 2600m, is capable of detecting targets in a long distance, which will help you to see farther and observe more in the outdoors.

    • TB650P--13.jpg

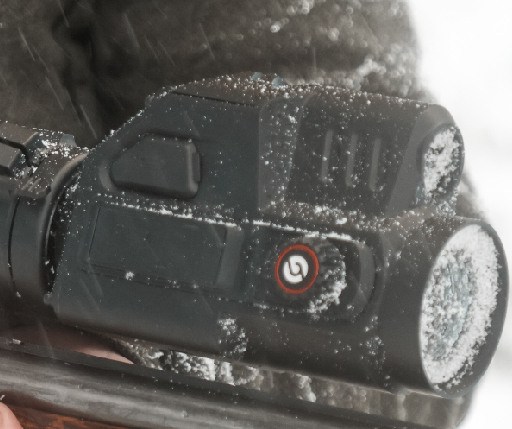

  • High protective IP68

    The high protective features of lP68 dustproof and waterproof, 1000G/ms shock resistance, support your outdoor observation, hunting, or rescue tasks even in rain, fog, or mist weather.

    • TB650P--14.jpg
  • FuII-HD AMOLED display

    The 0.39" 1920x1080 high-definition AMOLED screen, allows for a visual experience with vibrant colors and excellent image quality, significantly enhancing the comfort of observation.

    • TB650P--15.jpg

Technical Parameters

Model

TB650P

ADD TO COMPARE

Sensor
Type Uncooled VOx Infrared Detector, 8 to 14μm
Resolution 640×512@12μm
NETD 20mK
Frame rate 50Hz
Lens
Objective lens 50mm, F1.0
Field of view 8.8°×7.0°
FOV m@100m 15×12
Magnification 1x
Detection range 2600m/2800yd
Display
Display type 0.39'' AMOLED 1920×1080
Color palettes White Hot, Black Hot, Red Hot, Green Hot, Iron Red, Blue Hot, Sepia
Eyepiece Eye relief: 20mm; Zoom: 6.8x
Hardware
WIFI 2.4G, 5G
Interface USB Type-C (Power supply/USB2.0)
Others Microphone, Bluetooth
System
Recording function Photo/Video (Audio recording included)
Memory capacity 64GB
Power
Battery type 2 replaceable 18650 batteries
Operating time 9 hours
Environmental
Operating temp. -20°C to 50°C / -4°F to +122°F
Shock 1000G at 1ms half sine pulse (as per IEC60068-2-27)
Encapsulation IP68
Physical
Weight (g/oz) 582/20.53
Size (mm/in) 161×89×97/6.34×3.50×3.82
Standard A device, Battery charger, 18650 battery×2, 5V2A adapter (US, Britain, Australia and Europe), USB Type-C cable, Quick use guide, Warranty card
Optional 18650 battery, Bluetooth remote control, Cover ring adapter
