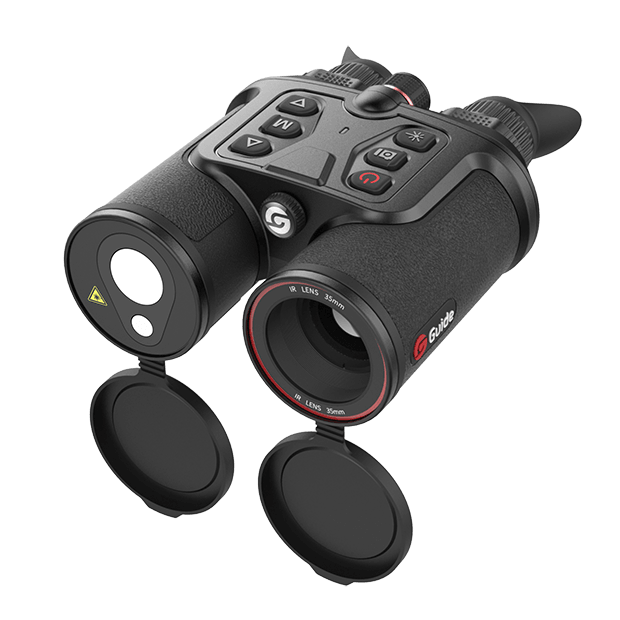

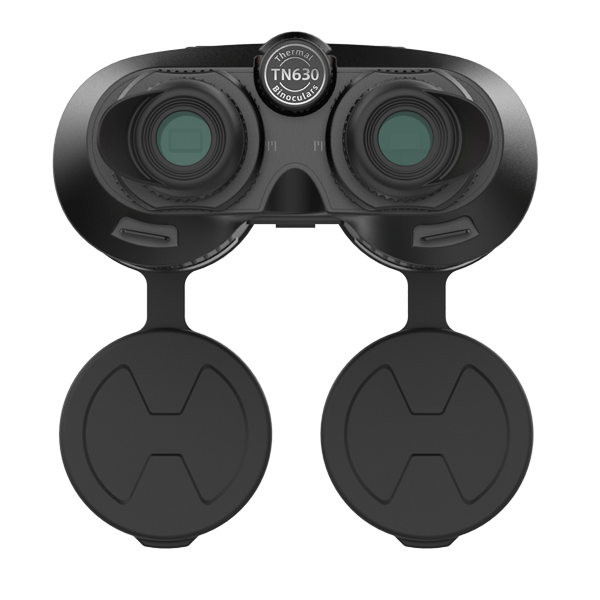

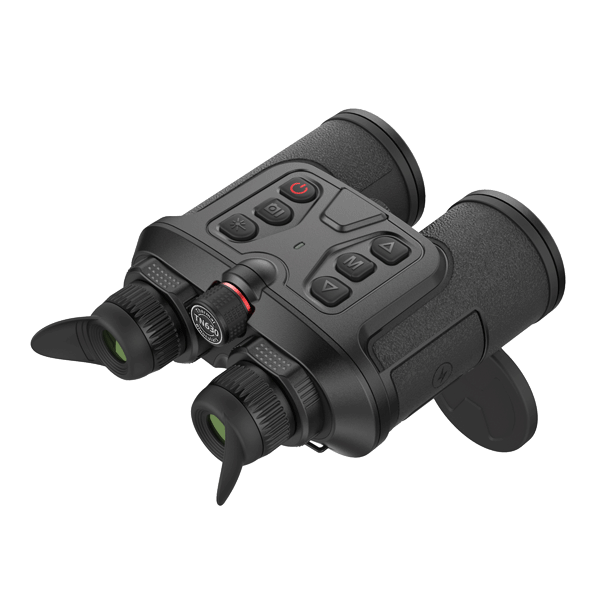

TN630

Handheld Thermal Binoculars

TN Normae Series follows classic binocular design, greatly reducing the fatigue feeling of long-time observation. It adopts high-sensitivity VOx uncooled IR detector, bring you high quality imaging and immersive observation experience with full color OLED 1024×768 high-definition display. A variety of functions to meet all your needs, such as taking photos, videos, WIFI, laser ranging, GPS, compass, etc.

640×480IR resolution

35mm/F1.2Focal Length

≤30mKNETD

2.0X~16XMagnification

Product Manual

Download the APP

ADD TO COMPARE

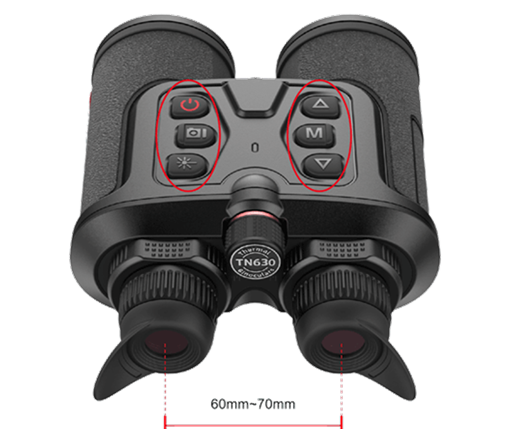

Ergonomic design Easy observation

Binocular design, greatly reducing the fatigue feeling of long-time observation; Adjustable interpupillary distance between 60mm~70mm, Catering to different group of people; Ergonomic design,raised buttons can be quickly recognized by touch even in total darkness.

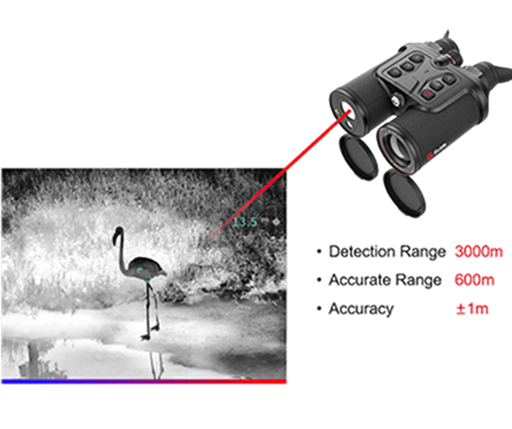

Quick location，All new experience

In the dark, laser ranging ensures accurate location with distance information.

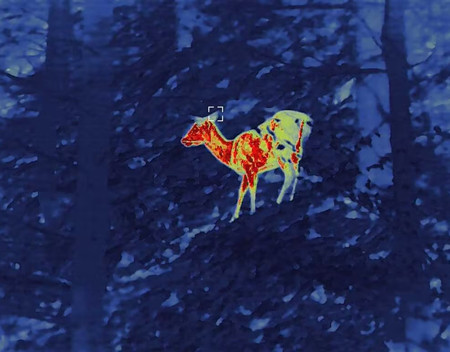

High Quality Imaging In Day and Night

Up to 640 × 480 VOx uncooled IR resolution and 50Hz image frame rate, ensure the observation of moving target smoothly.
Full-color OLED display

1024 x 768 Full-color AMOLED, High contrast, image details boost, Improving viewing comfort.

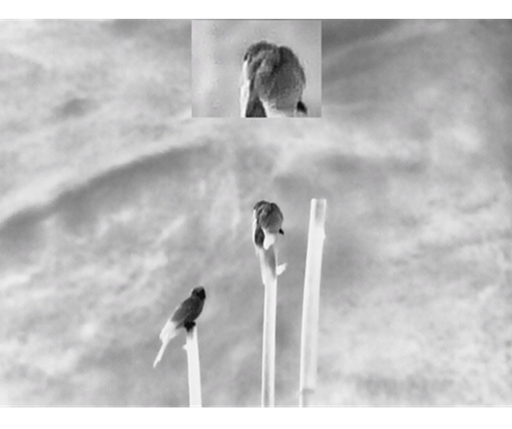

Well-designed PIP mode, highlighting the target

PIP mode, Identify the location of the target instantly by PIP Mode even in outdoor.

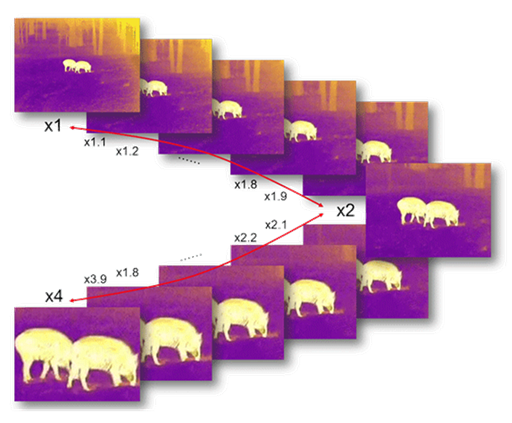

Smooth Zoom For Flexible Searching

Long press the up/down button to smoothly zoom in and zoom out. Make the search more flexible and pinpoint the target more quickly.

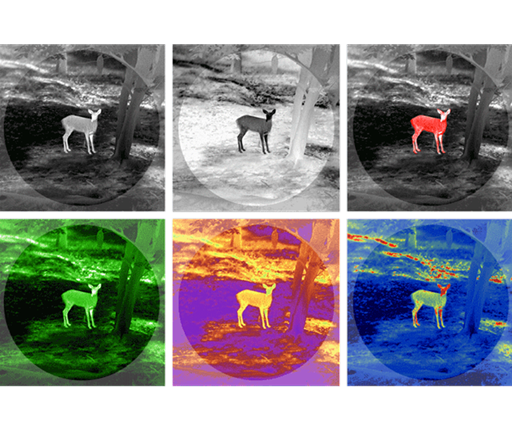

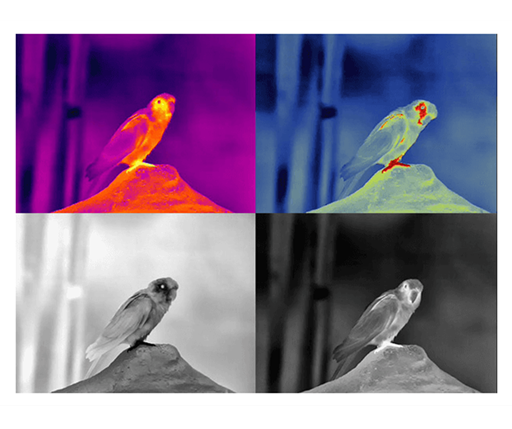

Multiple Color Palettes to Highlight the Target

• Six color palettes: white hot, black hot, red hot, green hot, iron red, blue heat.
• Support one-button switch to identify the location of the target instantly, helping to achieve all-weather observations.

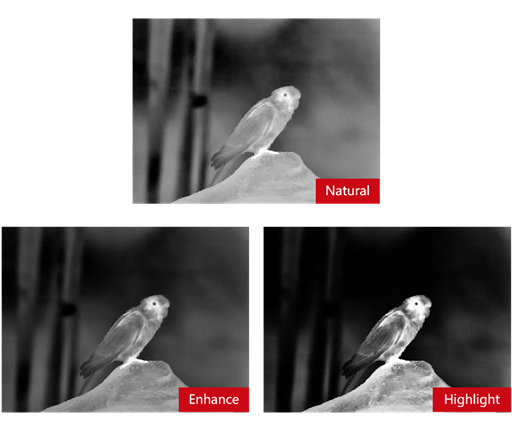

Multiple scene modes,Highlight Target Clearly

“Enhance/Highlight/Natural” can be quickly switched by one button, the image can be adaptively adjusted for different scenes , “Enhance/Highlight” can effectively reduce image impurities to highlight the target.

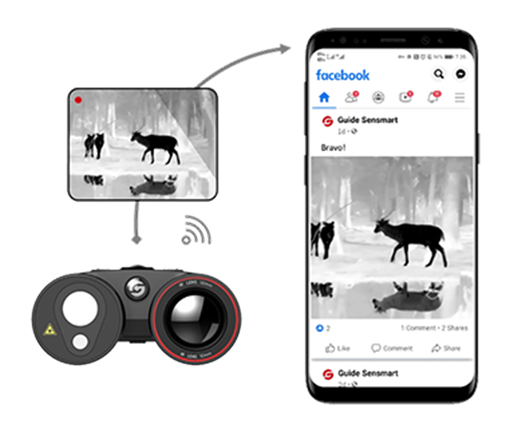

Photo and Video Recording

Support photos and videos, recording wonderful moments at any time. Realize remote control, live image and video transmission via WIFI connection, can share to your social media by APP.

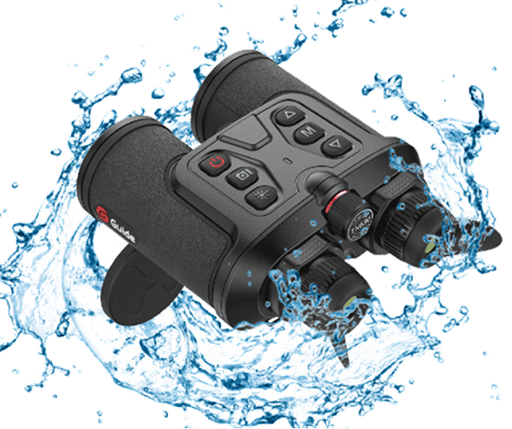

IP66, 1-meter Drop test

With IP66 waterproof-rated for protection from heavy-rainfall, dust, and impact. Working temperature is -30°C~50°C ,suitable for all kinds of harsh weather. It also passed UN38.3 battery certification, RoHS, CE, FCC certification, etc. Quality guaranteed.

Media Gallery

Technical Parameters

Model

TN630

ADD TO COMPARE

Sensor
Type	Uncooled VOx Infrared Detector, 8 to 14μm
Resolution	640×480@12μm
NETD	30mK
Frame rate	50Hz

Lens
Objective lens	35mm, F1.2
Field of view	12.52°×9.41°
FOV m@100m	22×16
Magnification	2.0x~16.0x
Detection range	1800m/1950yd

Display
Display type	0.39'' AMOLED 1024×768
Color palettes	Black Hot, White Hot, Adjustable Red Hot, Iron Red, Blue Hot, Green Hot
Eyepiece	Eye relief: 16 mm; Diopter: -6 to +6; Interpupillary distance adjustment: 60mm to 70mm; Zoom: 13.8x

Hardware
Laser rangefinder	1500m/1630yd
WIFI	2.4G
Interface	USB Type-C; Micro HDMI
Others	GPS, Compass, Gyroscope, Bluetooth

System
Recording function	Photo/Video
Memory capacity	16GB

Power
Battery type	2 replaceable 18650 batteries
Operating time	5.5 hours

Environmental
Operating temp.	-30°C to 50°C / -22°F to +122°F
Encapsulation	IP66

Physical
Weight (g/oz)	860/30.34
Size (mm/in)	162×146×70/6.38×5.75×2.76
Standard	Device, lens cap, 2 detachable eye masks, carry bag, shoulder strap, 5V2A adapter (US, Britain, Australia and Europe), 2 replaceable 18650 batteries, Battery charger, USB Type-C cable, micro HDMI cable, quick start guide
Optional	Extended bracket, Bluetooth remote control
