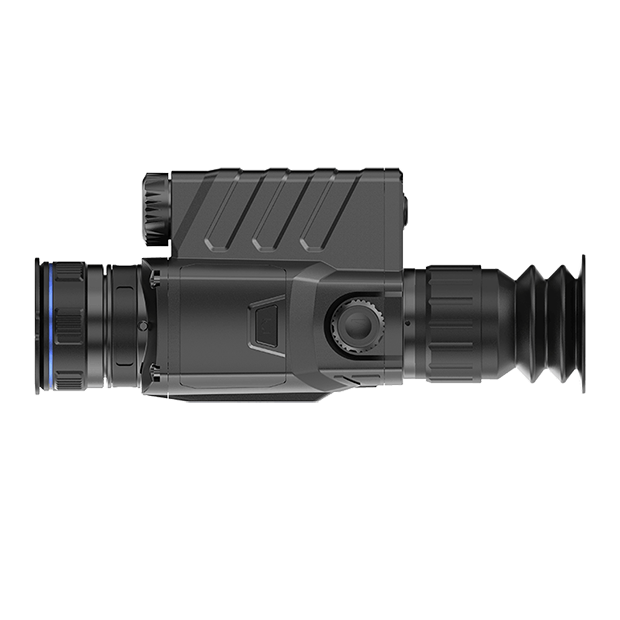

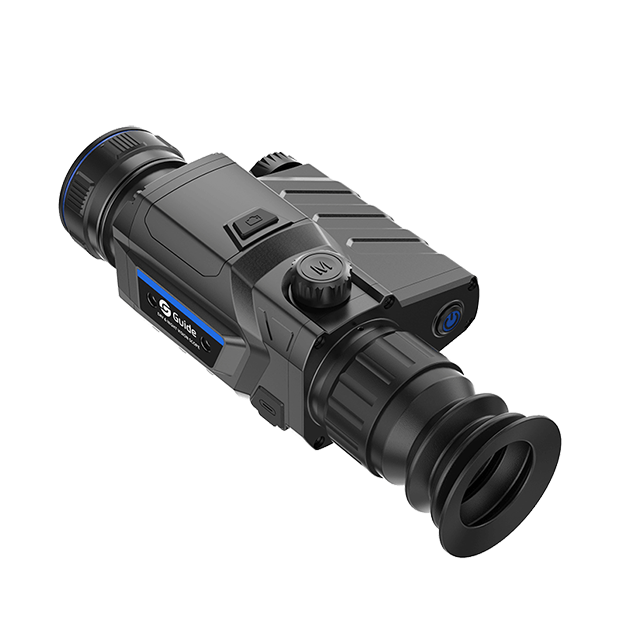

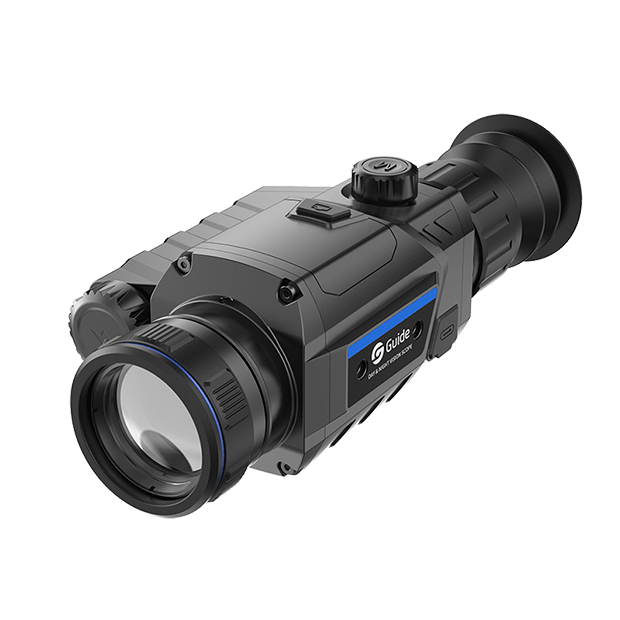

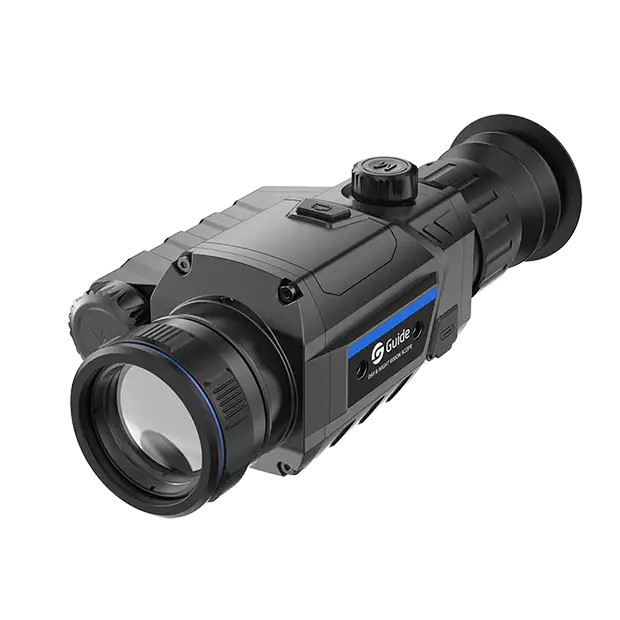

DR30
Digital Day & Night Vision Scope
The DR Series is a powerful and professional day and night vision scope with outstanding night vision capability, featuring an excellent 1920×1080@4μm CMOS sensor with a 35mm lens to create a large field of view of 12.5°×7.06° while the 1920×1080 full HD AMOLED display ensures your viewing experience. The 18650 Li-ion battery lasts up to 6 hours max depending on usage, ever worry about insufficient power during a hunting trip. Elevate your vision with the DR Series!
12.52°x7.06°Ultra large FOV
1920×1080OLED AMOLED
OTAupgrade
1920x1080@4µm HD sensor
ADD TO COMPARE
-

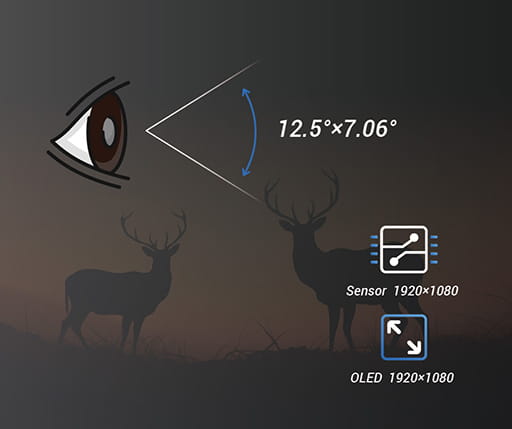

Ultra Large FOV Experience
The 1920×1080@4μm sensor resolution comes with a 35mm lens creating a large field of view of 12.5°×7.06° while the 1920×1080 full HD OLED display ensures your viewing experience. Images are smoother and more detailed.
-
-

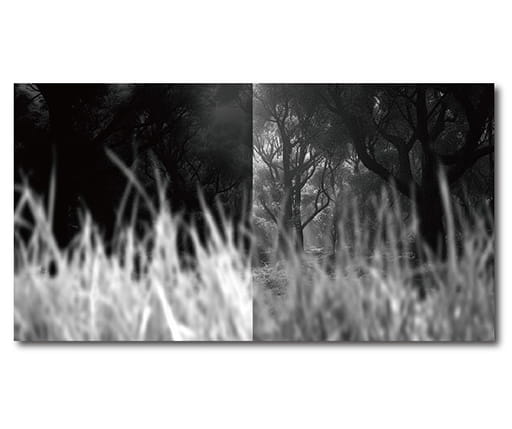

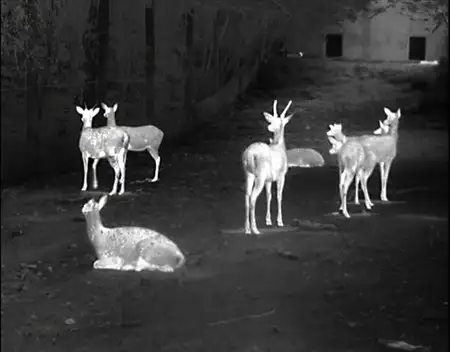

Clear Nighttime Imaging
Upgraded algorithms balance the image brightness on the display when using the scope with an IR illuminator. Additionally, they eliminate flood exposure from foreground objects and increase the brightness of distant objects to a comfortable level, thus offering exceptional crisp images with less noise, ensuring a professional nighttime outdoor experience.
-
-

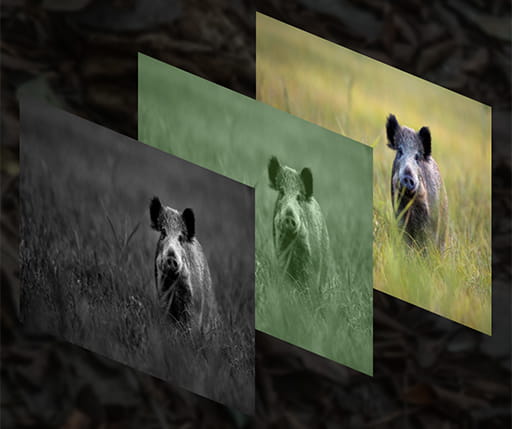

Three Viewing Modes
Day Mode for realistic color rendering, Low-light Mode to capture and display every detail, and Night Mode for every motion capture.
-
-

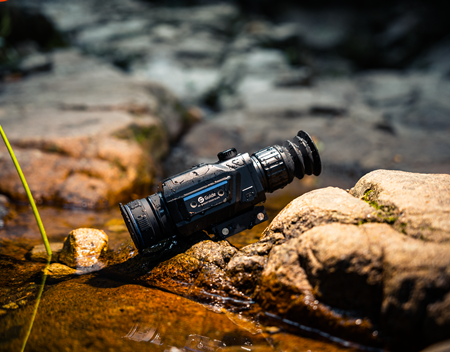

IP67 Waterproof

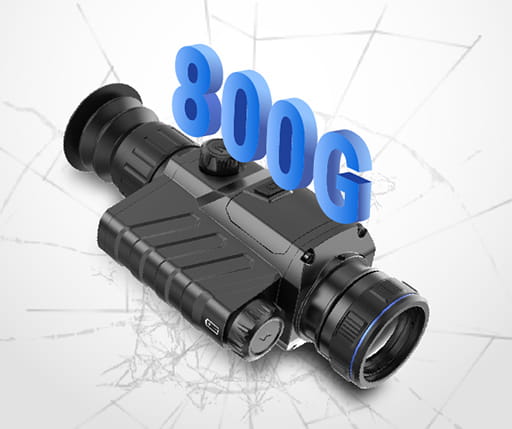

IP67 offers strong protection even in various harsh outdoor environments such as wet and moist weather, featuring exceptionally high shock resistance up to 800G.
-
-

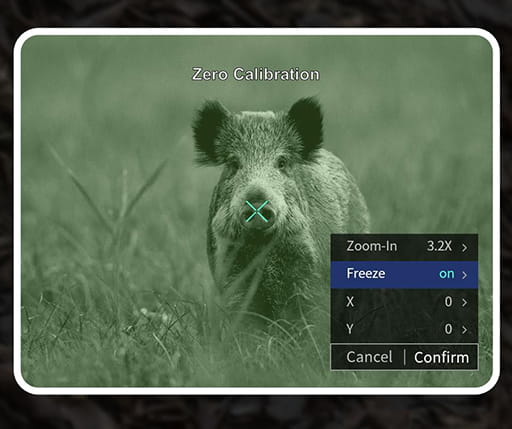

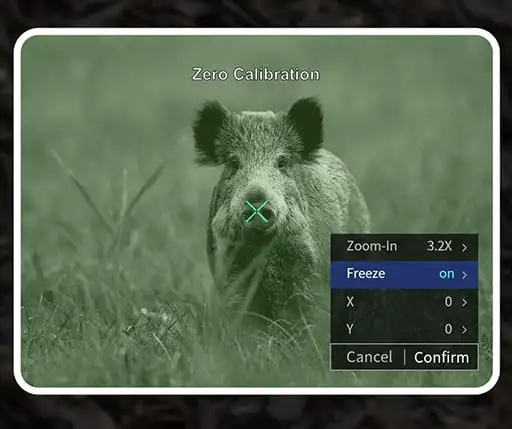

One-touch Freeze
Screen freeze for quick and easy zeroing improves accuracy and enhances user convenience, contributing to a better user experience.
-
-

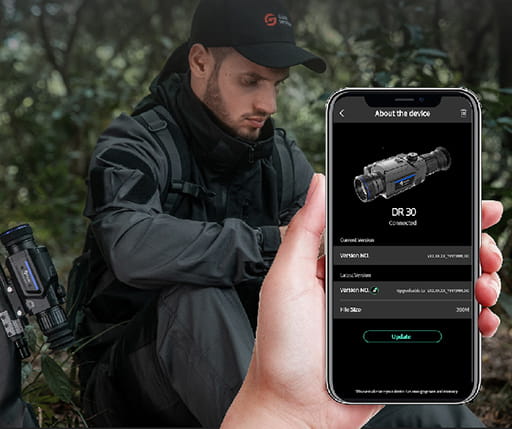

OTA Upgrade
Firmware updates have become more intuitive, easier, and more convenient through OTA upgrades. By connecting to TargetIR APP, you can automatically update the firmware at home.
-
Media Gallery
Technical Parameters
Model
DR30
ADD TO COMPARE
| Sensor | ||||
|---|---|---|---|---|
| Type | CMOS | |||
| Resolution | 1920×1080@4μm | |||
| Frame rate | 50Hz | |||
| Lens | ||||
|---|---|---|---|---|
| Objective lens | 35mm, F1.2 | |||
| Field of view | 12.52°×7.06° | |||
| FOV m@100m | 22×12 | |||
| Magnification | 2.175x~17.4x | |||
| Detection range | 500m/550yd (850nm); 450m/500yd (940nm) | |||
| Display | ||||
|---|---|---|---|---|
| Display type | 0.39'' AMOLED 1920×1080 | |||
| Scene modes | Day, Night, Low-light | |||
| Eyepiece | Eye relief: ≥ 48 mm; Diopter ± 4; Zoom: 14x | |||
| Hardware | ||||
|---|---|---|---|---|

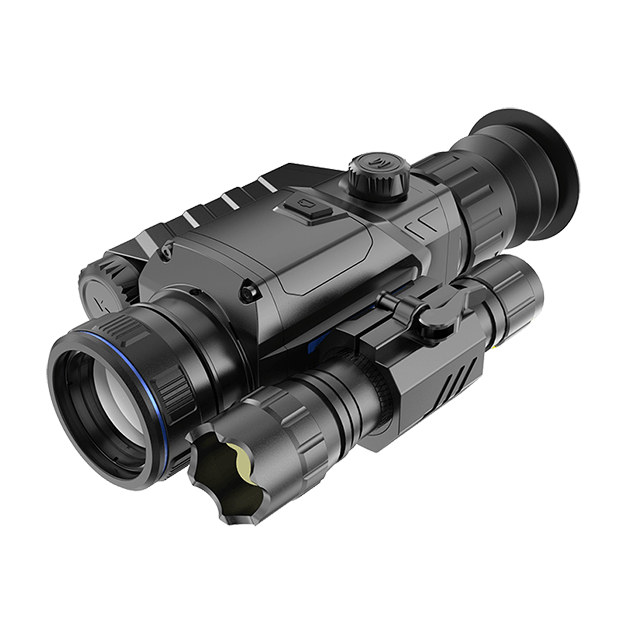

| IR illuminator | 850nm/940nm (Alternative) | |||
| WIFI | 2.4G | |||
| Interface | USB Type-C | |||
| System | ||||
|---|---|---|---|---|
| Recording function | Photo/Video | |||
| Memory capacity | 32 GB | |||
| Power | ||||
|---|---|---|---|---|
| Battery type | Single, replaceable 18650 battery | |||
| Operating time | 6 hours | |||
| Environmental | ||||
|---|---|---|---|---|
| Operating temp. | -30°C to 50°C / -22°F to +122°F | |||
| Shock | 800G at 1ms half sine pulse (as per IEC60068-2-27) | |||
| Encapsulation | IP67 | |||
| Physical | ||||
|---|---|---|---|---|
| Weight (g/oz) | 565/19.93 | |||
| Size (mm/in) | 218×88×66/8.58×3.46×2.60 | |||
| Standard | Device, Sight base (Choose from two specifications), Type-C cable, 5V2A adapter (US, Britain, Australia and Europe), 18650 battery, Battery charger, Lens cover, Eye mask, IR illuminator, IR illuminator bracket, Quick start guide, Warranty card | |||
| Optional | 18650 battery, Bluetooth remote control, Laser rangefinder | |||
